Loose flange acid-resistant - 40, 6.0bar, 48,3mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Loose flange acid-resistant. Loose flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 40, pressure pn 6.0 bar, for pipes with outer diameter 48.3 mm. Supplied under manufacturer part number GL10254470, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Loose flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 40 Pressure PN: 6.0 bar For pipes with outer diameter: 48.3 mm Number of bolt holes: 4 pcs Bolt dimension: 12 mm Bolt hole diameter: 14 mm Bolt circle diameter: 100 mm Flange thickness: 16 mm Diameter: 130 mm Steel quality: 4404 Tolerance: EN-1092 type 02A material certificate: EN 10204 3.1 Weight: 1.01 kg Inner diameter: 53 mm E dimension: 5 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0028 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GL10254470
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GL10254470
Product Documentation
More from Generic
Generic
DIN 7985 Pan-Head Pozidriv Machine Screw M4x6 mm Electro-Galvanised (200 pcs)
79850400062
Generic
DIN 125A Flat Washer stainless A2 - 22mm, 23mm, 39mm, 25PCS, 3mm
7089224
Generic
DIN 912 Allen Screw cylindrical black 12.9 - M2, 8mm, 500PCS
12912020081
Generic
ISO 4017 Fully Threaded Hex Set Screw M10x100 mm Electro-Galvanised 8.8 (100 pcs)
4017101002
Generic
Nutring N6 U-seal CH21 Nitrile - 100mm, 80mm, 12mm
365507
Generic

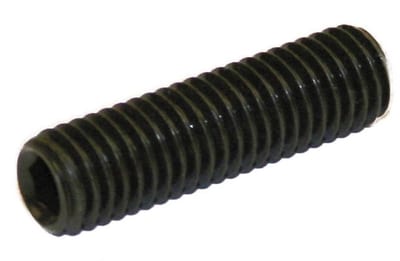

DIN 916 Grub Screw with cup point black 45H - M8, 30mm, 100PCS
916080301
Generic

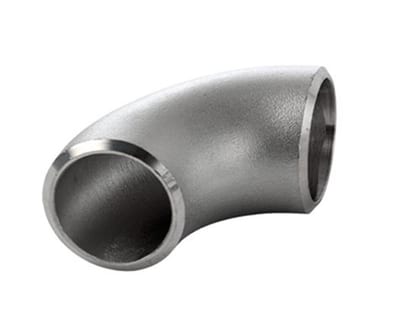

Weld Bend stainless welded - 457.2mm, 9,53mm, 18", 40S, 90°
AB36039187
Generic

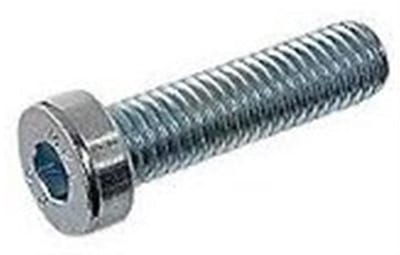

DIN 7984 Allen Screw Low Cylindrical Head Stainless - M4, 6mm, 500PCS, 6mm
7984040064
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GL10254470?
- GL10254470 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is GL10254470.
- What is the HS code for GL10254470?
- The customs tariff (HS) code for GL10254470 is 7307.21.
- Is a datasheet available for GL10254470?
- Yes — the GL10254470 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GL10254470?
- The minimum order quantity is 1.
- Is GL10254470 available?
- Yes — GL10254470 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for GL10254470?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
