Loose flange acid-resistant - 20, 6.0bar, 26,9mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Loose flange acid-resistant. Loose flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 20, pressure pn 6.0 bar, for pipes with outer diameter 26.9 mm. Supplied under manufacturer part number GL10253025, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Loose flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 20 Pressure PN: 6.0 bar For pipes with outer diameter: 26.9 mm Number of bolt holes: 4 pcs Bolt dimension: 10 mm Bolt hole diameter: 11 mm Bolt circle diameter: 65 mm Flange thickness: 14 mm Diameter: 90 mm Steel quality: 4404 Tolerance: EN-1092 type 02A material certificate: EN 10204 3.1 Weight: 0.42 kg Inner diameter: 31 mm E dimension: 4 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0012 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GL10253025
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GL10253025
Product Documentation
More from Generic
Generic
ISO 7379 Fit Bolt Grade 12.9 Black Cylindrical - M10, 12 mm, 90 mm, 1 pc
737910120901
Generic
ISO 4017 / DIN 933 Set Screw, Untreated 8.8, M36 x 65 mm
4017360651
Generic
O-ring FKM (Viton) - 70mm, Shore 75 ± 5, 5,00mm
293850
Generic
ISO 4017 / DIN 933 Set Screw acid-resistant A4 KL. 80 - M5, 16mm, 500PCS
80933050166
Generic
Nutring V8KI U-seal CH38 polyurethane - 71mm, 56mm, 11,5mm
233400
Generic

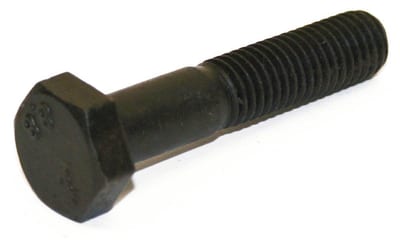

DIN 931 Hex Bolt, Untreated 8.8, M12 x 100 mm
