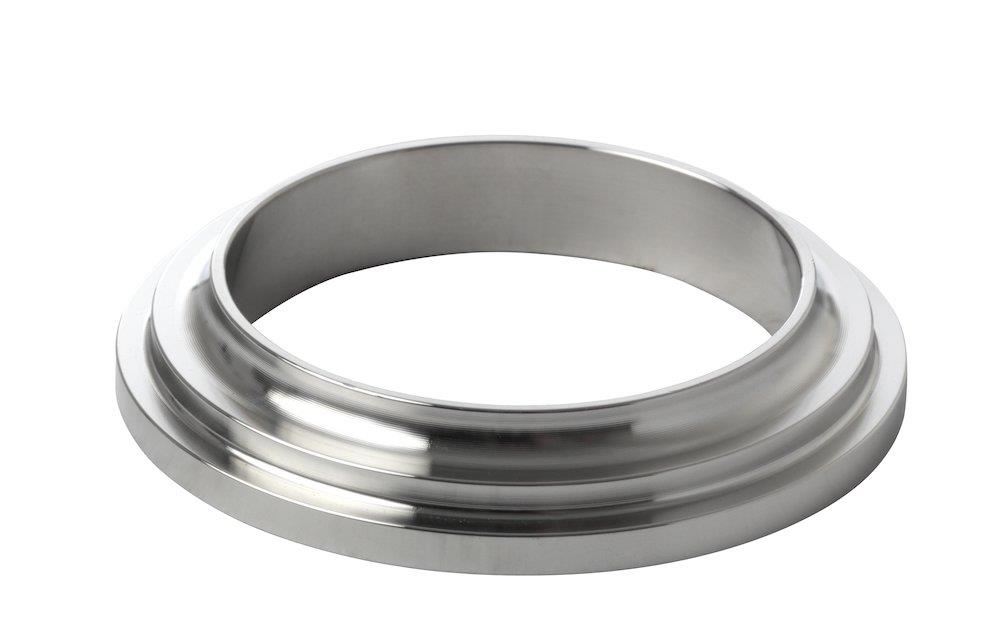

Hygienic Union Weld Liner DIN 11851, Long, DN15, 304
Pricing
Request a quote
We reply within 24 hours
Product Description
Hygienic (food-grade) weld liner (cone stub), long version, for DIN 11851 unions, DN15; stainless steel 1.4301 (304), material certificate EN 10204 3.1.
Technical Specifications
- Product type
- Welding stud
- Product group
- Acid-resistant and Stainless fittings
- Outer diameter
- 19 mm
- Thickness
- 1.5 mm
- DN dimension
- 15
- Inner diameter
- 16 mm
- Steel quality
- 4301/304
- Material certificate
- EN 10204 3.1
- Weight
- 0.03 kg
- Length
- 17 mm
- D dimension
- 28.5 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0002 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- China
- Customs tariff code (EU CN)
- 73072390
- HS code
- 7307.23
- Manufacturer part number
- DN20132330
Standards & Compliance
- HS Code
- 7307.23
Cross References
- MPN DN20132330
Product Documentation
