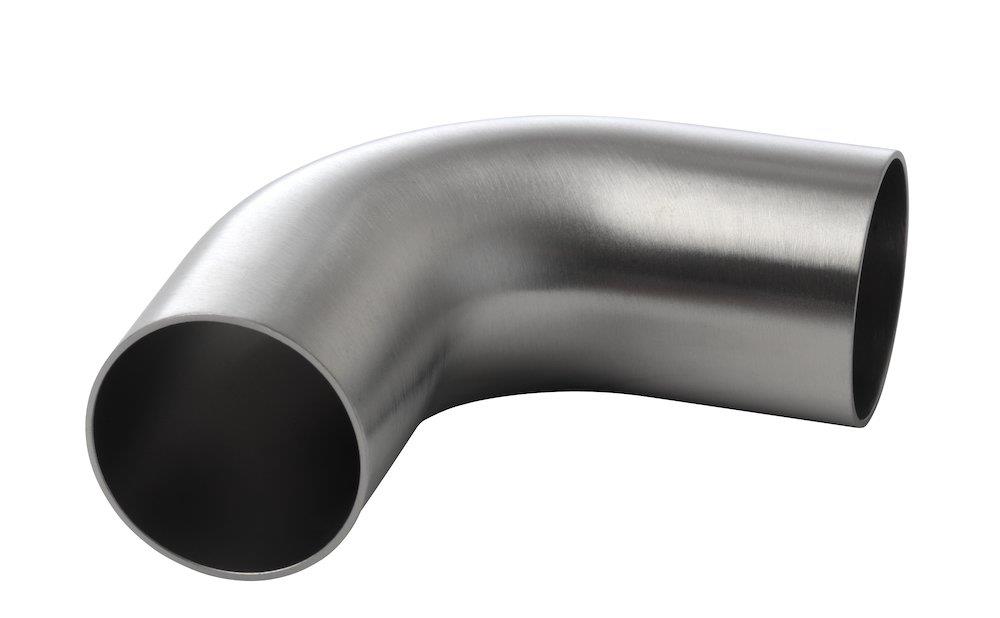

Hygienic Weld Bend 90°, Ø63.5 × 1.6 mm, R63.5, 304 Satin
Pricing
Request a quote
We reply within 24 hours
Product Description
Hygienic (food-grade) weld bend 90° for sanitary stainless pipework: outer diameter 63.5 mm, wall thickness 1.6 mm, bending radius 63.5 mm; stainless steel 1.4301 (304), satin finish Ra 0.8 µm, tolerance DS/SMS, material certificate EN 10204 3.1.
Technical Specifications
- Product type
- Hygienic weld bends
- Product group
- Acid-resistant and Stainless fittings
- Outer diameter
- 63.5 mm
- Thickness
- 1.6 mm
- Bending radius
- 63.5 mm
- Angle
- 90°
- Steel quality
- 4301/304
- Material certificate
- EN 10204 3.1
- Weight
- 0.54 kg
- Fineness
- Ra. 0.8 µm
- Tolerance
- DS/SMS
- L1 dimension
- 105 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0032 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- China
- Customs tariff code (EU CN)
- 73072310
- HS code
- 7307.23
- Manufacturer part number
- DB10135251
- VVS number
- 032200064
Standards & Compliance
- HS Code
- 7307.23
Cross References
- MPN DB10135251
- VVS 032200064
