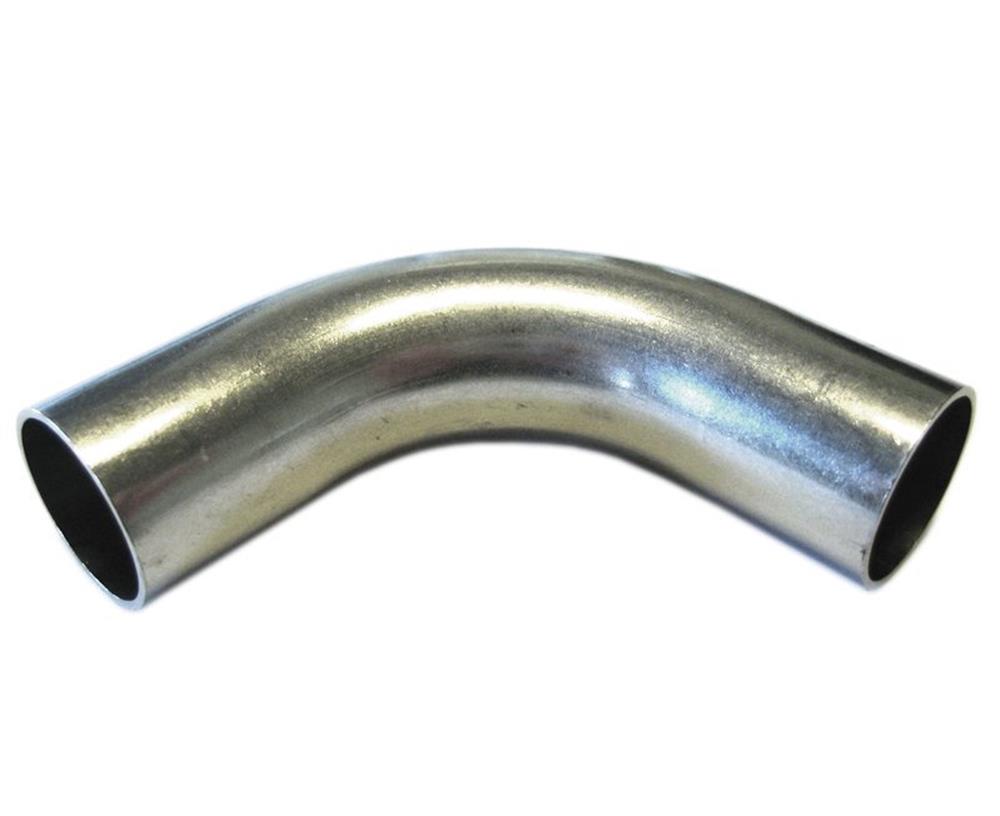

Hygienic Weld Bend 90°, Ø41 × 1.5 mm, R60, Long leg, 316L Satin
Pricing
Request a quote
We reply within 24 hours
Product Description
Hygienic (food-grade) weld bend 90° for sanitary stainless pipework: outer diameter 41 mm, wall thickness 1.5 mm, bending radius 60 mm, long leg (L1 100 mm); stainless steel 1.4404 (316L), satin finish Ra 0.8 µm, tolerance DIN 11852-BL, material certificate EN 10204 3.1.
Technical Specifications
- Product type
- Hygienic weld bends Product group: Acid-resistant and Stainless fittings Outer diameter: 41 mm Thickness: 1.5 mm Bending radius: 60 mm Angle: 90° Steel quality: 4404/316L material certificate: EN 10204 3.1 Weight: 0.12 kg Fineness: Ra. 0.8 µm Tolerance: DIN 11852-BL L1 dimension: 100 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0009 kg CO2e per pcs Environmental declaration: LCA Country of origin: China Customs tariff code (EU CN): 73072310 HS code: 7307.23 Manufacturer part number: DB47344021
Standards & Compliance
- HS Code
- 7307.23
Cross References
- MPN DB47344021
Product Documentation
