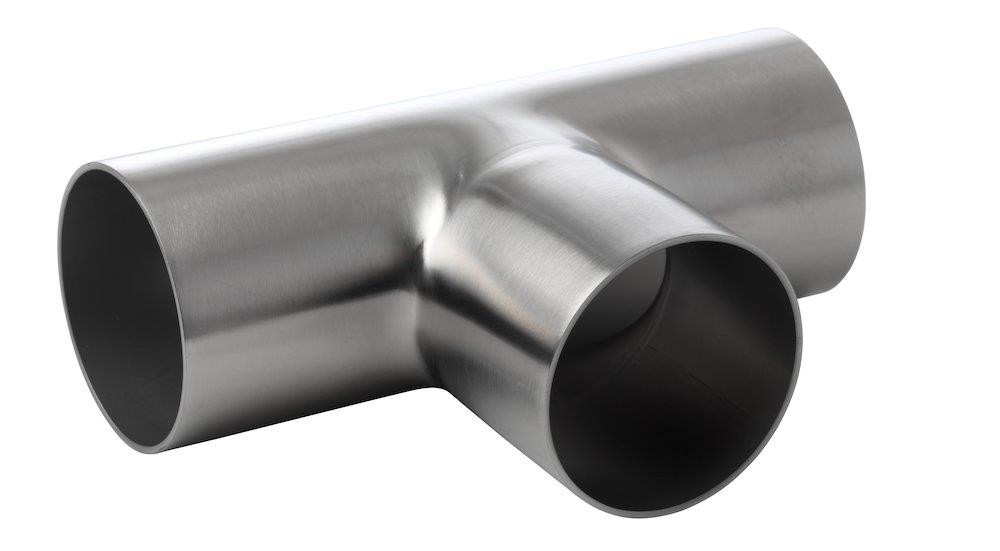

Hygienic Weld Tee, Ø18 × 1.5 mm, L 70 mm, 316L Satin
Pricing
Request a quote
We reply within 24 hours
Product Description
Hygienic (food-grade) equal weld tee for sanitary stainless pipework: outer diameter 18 mm, wall thickness 1.5 mm, length 70 mm; stainless steel 1.4404 (316L), satin finish Ra 0.8 µm End configuration: with short branch, tolerance DIN 11852, material certificate EN 10204 3.1.
Technical Specifications
- Product type
- Hygienic weld tees Product group: Acid-resistant and Stainless fittings Outer diameter: 18 mm Outer diameter B: 18 mm Thickness: 1.5 mm Length: 70 mm Type: TK Fineness: Ra. 0.8 µm End configuration: with short branch Steel quality: 4404/316L Tolerance: DIN 11852 material certificate: EN 10204 3.1 Weight: 0.03 kg L2 dimension: 11 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0002 kg CO2e per pcs Environmental declaration: LCA Country of origin: China Customs tariff code (EU CN): 73072390 HS code: 7307.23 Manufacturer part number: DT31342255
Standards & Compliance
- HS Code
- 7307.23
Cross References
- MPN DT31342255
Product Documentation
More from Generic
Generic
O-ring FKM (Viton) - 80mm, Shore 75 ± 5, 2,50mm
183789
Generic
U-Bolt acid-resistant pickled - 204mm, 5mm
CU10207994
Generic
Clamp Band - 22mm, 32mm, 12mm, acid-resistant W5
G5022
Generic
DIN 1481 Spring Pin stainless A1 - 5mm, 18mm
14810500184
Generic
O-ring NBR (nitrile) - 118mm, Shore 70, 5,00mm
236625
Generic
Polyethylene Plate PE1000 Natural - 2000mm, 1000mm, 5mm
1063799
Generic
Loose flange aluminium epoxy RAL7001 grey - 450, 10bar, 457,2mm
GL91759181
Generic
Hot-rolled plate black S235JR/S240 - 4000mm, 2000mm, 10mm
347390
Catalogue entry last verified: 2026-10-02. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy DT31342255?
- DT31342255 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is DT31342255.
- What is the HS code for DT31342255?
- The customs tariff (HS) code for DT31342255 is 7307.23.
- Is a datasheet available for DT31342255?
- Yes — the DT31342255 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for DT31342255?
- The minimum order quantity is 1.
- Is DT31342255 available?
- Yes — DT31342255 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for DT31342255?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
