LEDVANCE

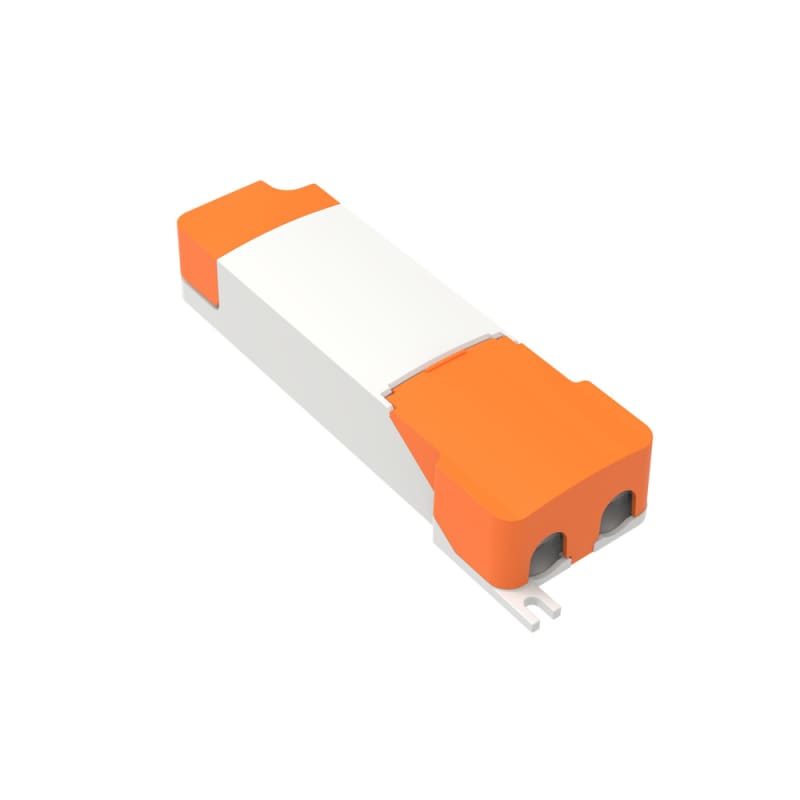

Driver DS-V 30/220-240/800 Panel COMP
Part number4099854748837EAN / GTIN4099854748837HS code8504.40
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
LEDVANCE 4099854748837 30W/26W/22W, IP20, 220-240V.
Technical Specifications
- Manufacturer part number (MPN)
- 4099854748837
- EAN / GTIN
- 4099854748837
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Operation by Bluetooth
- No
- Power consumption
- 2.8 W
- Compatible with Casambi
- No
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- Constant light output (CLO)
- No
- No dim function
- Yes
- Housing
- Plastic housing
- Suitable for constant current
- No
- Suitable for constant voltage
- Yes
- Output voltage
- 30–38 V
- Output current
- 600–800 mA
- Suitable for DC-voltage (primary side)
- Yes
- Output power
- 30 W
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Length
- 175 mm
- Width
- 55 mm
- Height
- 30 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- No
- Ambient temperature
- -10–45 °C
- Short-circuit protected
- No
- Frequency input voltage
- 50–60 Hz
- Overload protection
- Yes
- Overtemperature protection
- No
- PWM modulation
- No
- Dimming DALI-2
- No
- Dimming D4i
- No
- Mains surge immunity (differential mode, L-N)
- 1 kV
- Driver lifetime
- 100000 h
- Independently operating
- Yes
- Efficiency
- 92 %
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4099854748837
- SAP 1200944343
- Code 84235787
Product Documentation
Document preview: Driver DS-V 30/220-240/800 Panel COMP (4099854748837) — Specification sheet
