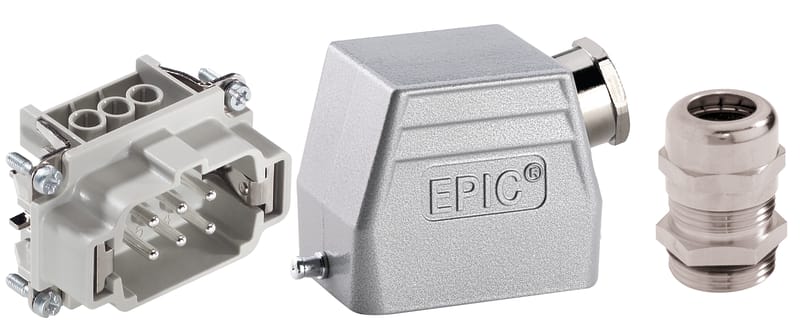

LAPP Kabel EPIC® KIT H-BE 6 SS complete connector kit, aluminium plug case, IP65, with SKINTOP® MS-M 20 x 1.5 cable gland
Pricing
Request a quote
We reply within 24 hours
Product Description
Complete EPIC rectangular connector kit in the H-BE 6 SS configuration, supplied as a plug case (hood). Contains EPIC® H-B 6 TS housing and SKINTOP® MS-M 20 x 1.5 cable gland. Aluminium housing with a powder coating finish, grey. Closed by a single locking lever. 1 conduit inlet, cable entry sideways, metric cable gland thread. Housing dimensions W 43 mm x H 52 mm x D 60 mm. Ingress protection IP65 when mounted. Supplied without a sealing gasket. Corrosion resistant. Not an EMC-screened version. Operating temperature -40–125 °C. Country of origin Germany. HS code 8536.69. El-nummer (NO): 1531182.
Technical Specifications
- Manufacturer part number (MPN)
- 1531182
- Sales unit
- pcs
- El-nummer (NO)
- 1531182
- ETIM class
- SC000437
- Width
- 43 mm
- Height
- 52 mm
- Depth
- 60 mm
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- Yes
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- No
- Type of housing
- Plug case
- Degree of protection (IP), mounted
- IP65
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- 4044776571964
- El-nr 1531182
Product Documentation
