LAPP

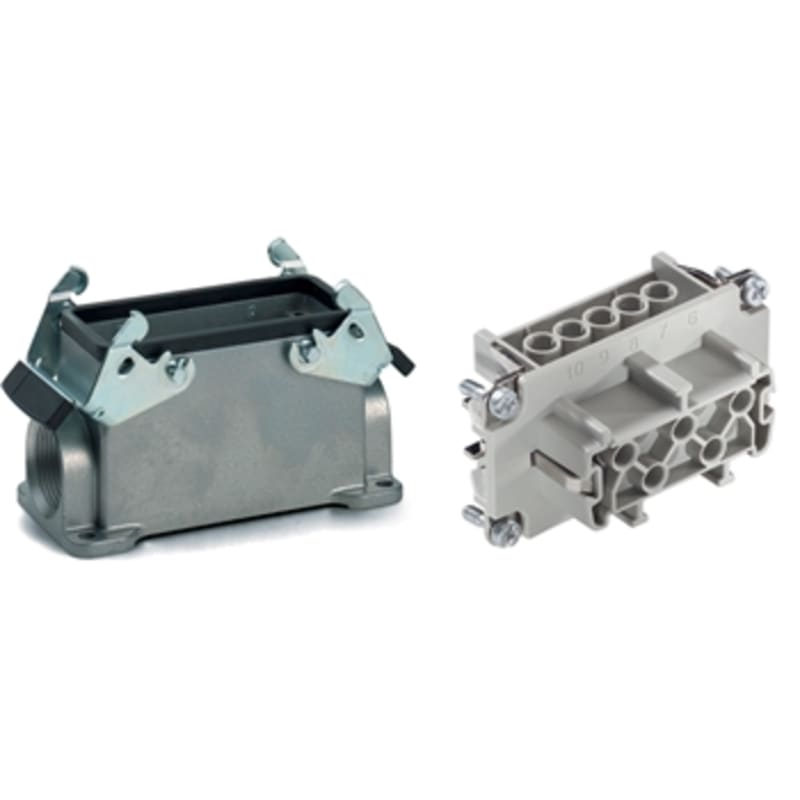

Epic® KIT H-BE 10 BS SGR M25
Part number75009643EAN / GTIN4044774419572HS code8536.69
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP 75009643 EPIC® KIT H-BE 10 BS SGR M25.
Technical Specifications
- Manufacturer part number (MPN)
- 75009643
- EAN / GTIN
- 4044774419572
- Sales unit
- pcs
- Contact type
- Bus
- Width
- 52 mm
- Height
- 57 mm
- Depth
- 94 mm
- Number of poles
- 10
- Number of plug-in contact rows
- 2
- Rated current In
- 16 A
- Ambient temperature
- -40–125 °C
- Rated voltage
- 500 V
- Rated surge voltage
- 6 kV
- Overvoltage category
- III
- Pollution degree
- 3
- Connectable conductor cross section solid-core
- 0.5–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.5–2.5 mm²
- Type of electric connection
- Screw connection
- Material of contact surface
- Silver
- Material contact
- Brass
- Material insulation body
- Polyamide (PA)
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Type of locking
- Double locking lever
- Mounting method
- Surface mounting
- With protective conductor
- Yes
- Operating temperature
- -40–125 °C
- Degree of protection (IP), mounted
- IP65
- EMC-version
- No
- Number of conduit inlets
- 1
- With sealing
- Yes
- Position cable feed
- Sideways
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4044774419572
- SAP 1200927848
- Code 84218561
Product Documentation
Document preview: Epic® KIT H-BE 10 BS SGR M25 (75009643) — Specification sheet
