LAPP

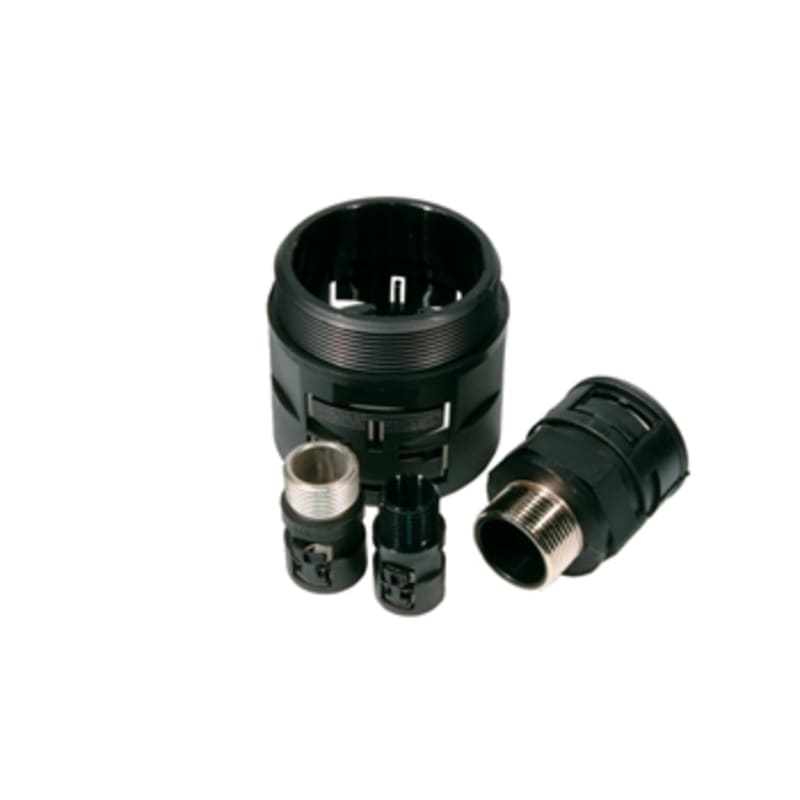

Nipple M20 NW17 straight. (83156186)
Part number83156186EAN / GTIN4044774093604HS code3917.40
Pipes, Fittings & Flanges
Threaded Fittings
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP 83156186 Nipple straight for NW17 VPGRB-17M20 with plastic threads.
Technical Specifications
- Manufacturer part number (MPN)
- 83156186
- EAN / GTIN
- 4044774093604
- Sales unit
- pcs
- Thread size
- M20
- Colour
- Black
- Model
- Straight
- Type of connection
- Thread
- Thread length
- 13 mm
- Total length
- 41.5 mm
- Construction type
- External thread
- Revolving thread
- No
- Lowest inner diameter hose
- 17.9 mm
- Approved in combination with protective conduit UR
- Yes
- One-piece
- Yes
- Max. outer diameter hose
- 30.4 mm
- Nominal diameter
- 17 mm
- Degree of protection (IP)
- IP67
- Thread connection size
- M20 x 1.5
- With integrated holder
- No
- Material screw gland
- Polyamide (PA)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4044774093604
- SAP 1200927900
- Code 84218607
Product Documentation
Document preview: Nipple M20 NW17 straight. (83156186) — Specification sheet
More from LAPP
LAPP

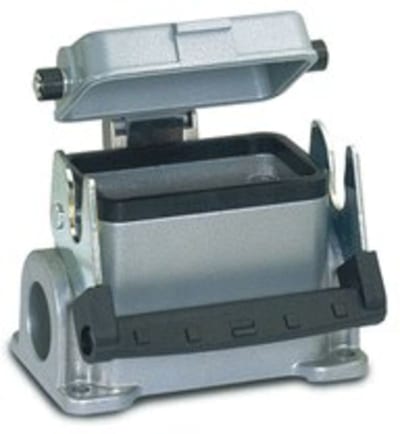

Chassis on wall 10 pin M25 with cover
79064600
LAPP

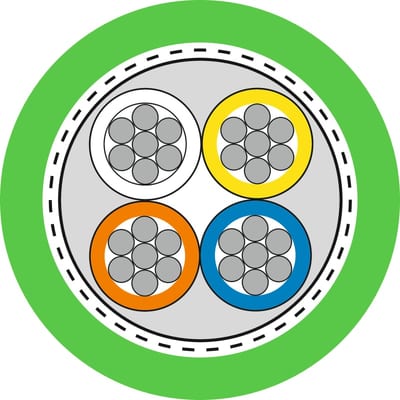

Etherline FD P FC UL/CSA CAT5
2170894
LAPP
Unitronic Liycy 8X0.5
0034608
LAPP

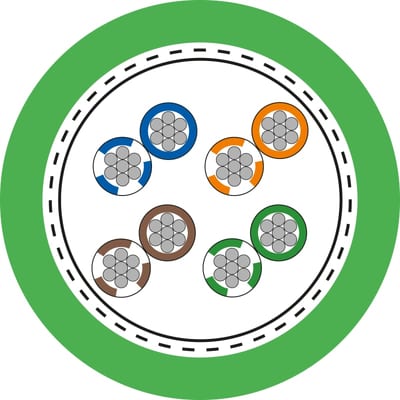

ETHERLINE HEAT Cat. 5E 4X2XAWG24/7
2170850
LAPP

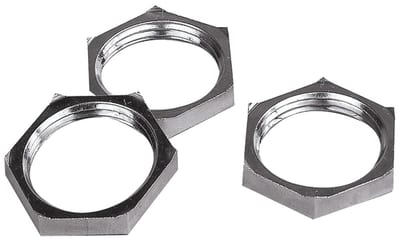

NUT M50 EMC FORN. Brass.
