LAPP
Corrugated Conduit NW07 10/6,4 PA 100M
Part number1211900EAN / GTIN4044774104157HS code3917.31
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

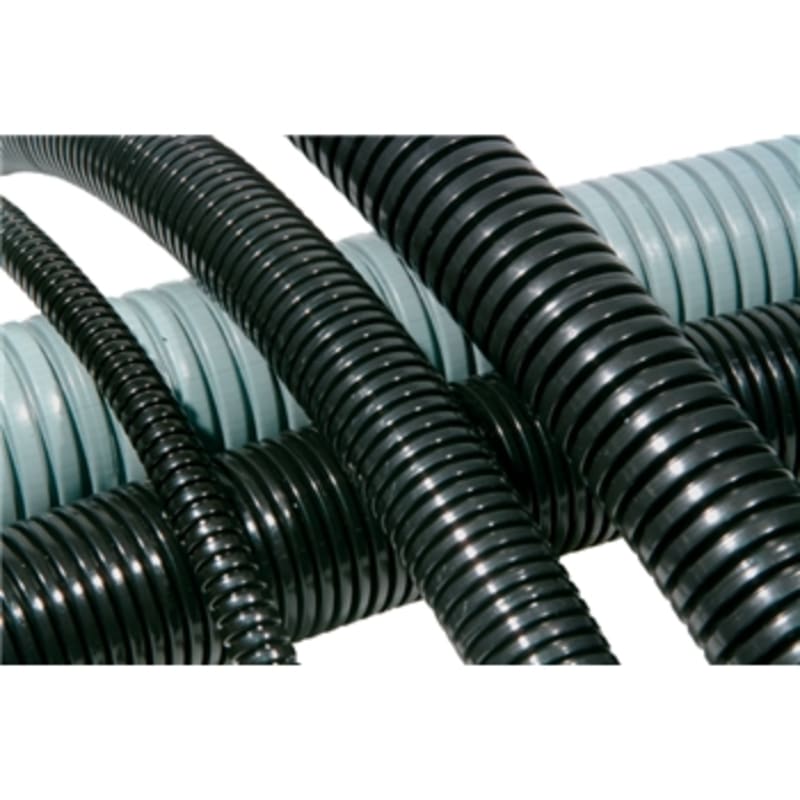

LAPP 1211900 corrugated polyamide conduit PARNB NW07, outer diameter 10 mm, inner diameter 6,4 mm, 100 m coil.
Technical Specifications
- Manufacturer part number (MPN)
- 1211900
- Sales unit
- m
- Package quantity
- 100 m
- EL number
- 1211900
- EAN / GTIN
- 4044774104157
- ETIM class
- EC001175 - Corrugated plastic hose
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 39173110
- Base unit
- m
- Price unit
- m
- Product height
- 10 mm
- Product width
- 10 mm
- Product length / depth
- 1000 mm
- Net weight
- 22 g
- Product volume
- 0.1 dm³
- Price units per base unit
- 1
- Nominal diameter (mm)
- 7
- Inner diameter (mm)
- 6.4
- Outer diameter (mm)
- 10
- Compressive strength (N)
- 125
- Bending radius, static (mm)
- 15
- Working temperature (°C)
- -40 to 105
- Halogen free
- Yes
- Oil resistant
- Yes
- Approved according to EN 61386-23
- Yes
- With draw wire
- No
- Lengthwise slotted
- No
- Closable (two-part)
- No
- High conducting inner coating
- No
- Flame accelerating
- No
- Approved according to LUL/British Standard
- No
- Approved according to Lloyd's Register TA
- No
- Approved according to UTAC
- No
- Colour
- Black
- Fire resistance according to UL94
- V2
- Sheathing material
- Not sheathed
- Material
- Polyamide (PA)
- Bending strength
- Pliable
Standards & Compliance
- HS Code
- 3917.31
Cross References
- 4044774104157
Product Documentation
Document preview: Corrugated Conduit NW07 10/6,4 PA 100m (1211900) — Series Data Sheet (OEM, English)
