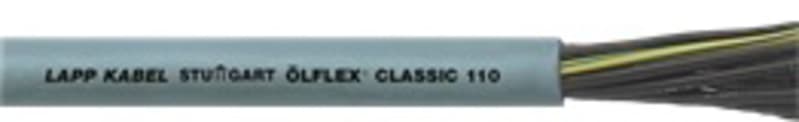

LAPP ÖLFLEX CLASSIC 110 4G4 Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP ÖLFLEX CLASSIC 110 4G4 is a VDE-registered, oil-resistant flexible PVC control cable for fixed installation and occasional flexing under medium mechanical stress — machine tools, plant and mechanical engineering, conveyor and assembly lines, and measuring and control technology. Conductor configuration 4 G 4 mm² (3 × 4 mm² + GN/YE protective conductor). Fine-wire bare-copper conductors to IEC 60228 / EN 60228 class 5; PVC core insulation (LAPP P8/1); black cores with white numbering to VDE 0293-334; cores stranded in layers; grey PVC outer sheath (approx. RAL 7001). Rated voltage U0/U 300/500 V, test voltage 4000 V AC. Outer diameter 10.8 mm, weight 249 kg/km, copper index 154 kg/km. Flame-retardant to IEC 60332-1-2; oil-resistant to DIN EN 50290-2-22. Manufacturer article 1119504, EAN 4044773063325.
Technical Specifications
- Manufacturer
- LAPP Series: ÖLFLEX CLASSIC 110 Manufacturer article no. (MPN): 1119504 EAN / GTIN: 4044773063325 Conductor configuration: 4 G 4 mm² Make-up: 3 × 4 mm² + GN/YE protective conductor Number of cores: 4 Cross-section per core: 4 mm² Protective conductor: green/yellow (GN/YE) Rated voltage U0/U: 300/500 V Test voltage: 4000 V AC (core/core) Conductor: bare copper, fine-wire class 5 (IEC 60228 / EN 60228) Insulation: PVC compound (LAPP P8/1) Core identification: black cores, white numbers (VDE 0293-334) Outer sheath: PVC, grey (approx. RAL 7001) Outer diameter: 10.8 mm Weight: 249 kg/km Copper index: 154 kg/km minimum bending radius: 4 × Ø (fixed) / 10 × Ø (occasional flexing) Temperature range: -40 °C to +80 °C (fixed) / -15 °C to +70 °C (flexing) Flame retardancy: IEC 60332-1-2 / EN 60332-1-2 Oil resistance: DIN EN 50290-2-22 Standards / approval: EN 50525-2-51; VDE reg. no. 7030 HS code: 8544.49 Sales unit: m Package quantity: 500 m
Standards & Compliance
- Standard
- EN 50525-2-51; VDE reg. 7030
- Material
- Bare copper conductor; PVC insulation and sheath
- Temperature Range
- -40 °C to +80 °C (fixed installation)
- Classification / Approval
- VDE registered (reg. no. 7030)
- HS Code
- 8544.49
Cross References
- EAN 4044773063325
- SAP 1000487531
- Code 8600670
Product Documentation
More from LAPP
LAPP
Ölflex Petro FD 865 CP 5G1,5
0023336
LAPP
ÖLFLEX Classic 135 CH 12G2,5
1123349
LAPP
Unitronic Sensor FD LIF9YC11Y 4X0,34
7038886
LAPP
Olflex® Spiral 540P 3G1,5 1500mm
73220150
LAPP
Unitronic Liycy 4X0.75
0034704
LAPP
Ölflex® HEAT 180 SIHF 4 G 6
00460333
LAPP
NUT M20 Light Grey (53119025)
LAPP
Ølflex Classic 135 CH 7X1,5
1071232
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1119504?
- 1119504 can be ordered from cballast.com as a LAPP catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this LAPP product?
- The manufacturer part number is 1119504.
- What is the HS code for 1119504?
- The customs tariff (HS) code for 1119504 is 8544.49.
- Who manufactures 1119504?
- 1119504 is a LAPP product in the Cables & Wiring range.
- Is a datasheet available for 1119504?
- Yes — the 1119504 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1119504?
- The minimum order quantity is 1.
- Is 1119504 available?
- Yes — 1119504 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
