LAPP ÖLFLEX CLASSIC 110 18G1.5 Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description

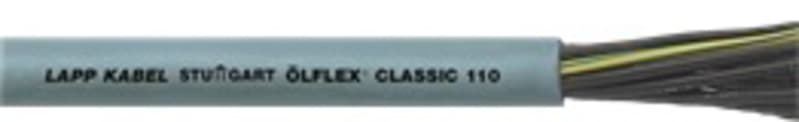

LAPP ÖLFLEX CLASSIC 110 18G1.5 is a VDE-registered, oil-resistant flexible PVC control cable for fixed installation and occasional flexing under medium mechanical stress — machine tools, plant and mechanical engineering, conveyor and assembly lines, and measuring and control technology. Conductor configuration 18 G 1.5 mm² (17 × 1.5 mm² + GN/YE protective conductor). Fine-wire bare-copper conductors to IEC 60228 / EN 60228 class 5; PVC core insulation (LAPP P8/1); black cores with white numbering to VDE 0293-334; cores stranded in layers; grey PVC outer sheath (approx. RAL 7001). Rated voltage U0/U 300/500 V, test voltage 4000 V AC. Outer diameter 14.4 mm, weight 407 kg/km, copper index 259 kg/km. Flame-retardant to IEC 60332-1-2; oil-resistant to DIN EN 50290-2-22. Manufacturer article 1119318, EAN 4044773064735.
Technical Specifications
- Manufacturer
- LAPP Series: ÖLFLEX CLASSIC 110 Manufacturer article no. (MPN): 1119318 EAN / GTIN: 4044773064735 Conductor configuration: 18 G 1.5 mm² Make-up: 17 × 1.5 mm² + GN/YE protective conductor Number of cores: 18 Cross-section per core: 1.5 mm² Protective conductor: green/yellow (GN/YE) Rated voltage U0/U: 300/500 V Test voltage: 4000 V AC (core/core) Conductor: bare copper, fine-wire class 5 (IEC 60228 / EN 60228) Insulation: PVC compound (LAPP P8/1) Core identification: black cores, white numbers (VDE 0293-334) Outer sheath: PVC, grey (approx. RAL 7001) Outer diameter: 14.4 mm Weight: 407 kg/km Copper index: 259 kg/km minimum bending radius: 4 × Ø (fixed) / 10 × Ø (occasional flexing) Temperature range: -40 °C to +80 °C (fixed) / -15 °C to +70 °C (flexing) Flame retardancy: IEC 60332-1-2 / EN 60332-1-2 Oil resistance: DIN EN 50290-2-22 Standards / approval: EN 50525-2-51; VDE reg. no. 7030 HS code: 8544.49 Sales unit: m Package quantity: 500 m
Standards & Compliance
- Standard
- EN 50525-2-51; VDE reg. 7030
- Material
- Bare copper conductor; PVC insulation and sheath
- Temperature Range
- -40 °C to +80 °C (fixed installation)
- Classification / Approval
- VDE registered (reg. no. 7030)
- HS Code
- 8544.49
Cross References
- EAN 4044773064735
- SAP 1000487521
- Code 8919236
Product Documentation
More from LAPP
LAPP
Ölflex® FD CLAS.81025G0,5
0026107
LAPP
Ölflex® Crane F 4G2,5
0041047
LAPP
LAPP ÖLFLEX CLASSIC 110 9G1.5 Control Cable
1119309
LAPP
Ölflex® Robust 210 7G0,75
0021904
LAPP
ÖLFLEX Classic 130 H 7X0,75
1123042
LAPP
Ölflex® Crane PUR 4 G 6 mm²
0045228
LAPP
ÖLFLEX Classic 130 H 4G2,5
1123142
LAPP
ØLFLEX-110 CH/03 4 G 1.5
1085903
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1119318?
- 1119318 can be ordered from cballast.com as a LAPP catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this LAPP product?
- The manufacturer part number is 1119318.
- What is the HS code for 1119318?
- The customs tariff (HS) code for 1119318 is 8544.49.
- Who manufactures 1119318?
- 1119318 is a LAPP product in the Cables & Wiring range.
- Is a datasheet available for 1119318?
- Yes — the 1119318 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1119318?
- The minimum order quantity is 1.
- Is 1119318 available?
- Yes — 1119318 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
