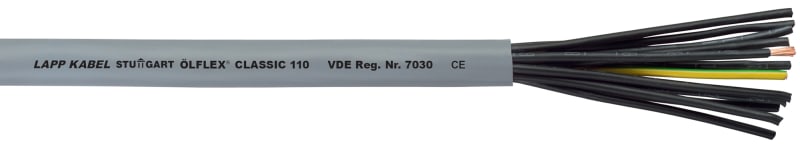

LAPP ÖLFLEX CLASSIC 110 12G1.5 Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP ÖLFLEX CLASSIC 110 12G1.5 is a VDE-registered, oil-resistant flexible PVC control cable for fixed installation and occasional flexing under medium mechanical stress — machine tools, plant and mechanical engineering, conveyor and assembly lines, and measuring and control technology. Conductor configuration 12 G 1.5 mm² (11 × 1.5 mm² + GN/YE protective conductor). Fine-wire bare-copper conductors to IEC 60228 / EN 60228 class 5; PVC core insulation (LAPP P8/1); black cores with white numbering to VDE 0293-334; cores stranded in layers; grey PVC outer sheath (approx. RAL 7001). Rated voltage U0/U 300/500 V, test voltage 4000 V AC. Outer diameter 12 mm, weight 279 kg/km, copper index 173 kg/km. Flame-retardant to IEC 60332-1-2; oil-resistant to DIN EN 50290-2-22. Manufacturer article 1119312, EAN 4044773064780.
Technical Specifications
- Manufacturer
- LAPP Series: ÖLFLEX CLASSIC 110 Manufacturer article no. (MPN): 1119312 EAN / GTIN: 4044773064780 Conductor configuration: 12 G 1.5 mm² Make-up: 11 × 1.5 mm² + GN/YE protective conductor Number of cores: 12 Cross-section per core: 1.5 mm² Protective conductor: green/yellow (GN/YE) Rated voltage U0/U: 300/500 V Test voltage: 4000 V AC (core/core) Conductor: bare copper, fine-wire class 5 (IEC 60228 / EN 60228) Insulation: PVC compound (LAPP P8/1) Core identification: black cores, white numbers (VDE 0293-334) Outer sheath: PVC, grey (approx. RAL 7001) Outer diameter: 12 mm Weight: 279 kg/km Copper index: 173 kg/km minimum bending radius: 4 × Ø (fixed) / 10 × Ø (occasional flexing) Temperature range: -40 °C to +80 °C (fixed) / -15 °C to +70 °C (flexing) Flame retardancy: IEC 60332-1-2 / EN 60332-1-2 Oil resistance: DIN EN 50290-2-22 Standards / approval: EN 50525-2-51; VDE reg. no. 7030 HS code: 8544.49 Sales unit: m Package quantity: 500 m
Standards & Compliance
- Standard
- EN 50525-2-51; VDE reg. 7030
- Material
- Bare copper conductor; PVC insulation and sheath
- Temperature Range
- -40 °C to +80 °C (fixed installation)
- Classification / Approval
- VDE registered (reg. no. 7030)
- HS Code
- 8544.49
Cross References
- EAN 4044773064780
- SAP 1000487519
- Code 8600655
Product Documentation
More from LAPP
LAPP
LAPP ÖLFLEX CLASSIC 110 CY 4G 2.5 Shielded Control Cable
1135404
LAPP
Unitronic Liycy 2X0,75
0034702
LAPP
LAPP ÖLFLEX CLASSIC 110 3X0.75 Control Cable
1119803
LAPP
LAPP ÖLFLEX 100 CY 4G 1.5 Shielded Control Cable
00354593
LAPP
LAPP ÖLFLEX CLASSIC 130 H 7G 0.75 Halogen-Free Control Cable
1123041
LAPP
LAPP ÖLFLEX CLASSIC 130 H 2X0.75 Halogen-Free Control Cable
1123032
LAPP
Roflex Orange 12X0,75MM2
ROFLEX 12G0,75MM2
LAPP
BETAFLAM145°c 2X2X0,5mm²DNV (1111509)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1119312?
- 1119312 can be ordered from cballast.com as a LAPP catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this LAPP product?
- The manufacturer part number is 1119312.
- What is the HS code for 1119312?
- The customs tariff (HS) code for 1119312 is 8544.49.
- Who manufactures 1119312?
- 1119312 is a LAPP product in the Cables & Wiring range.
- Is a datasheet available for 1119312?
- Yes — the 1119312 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1119312?
- The minimum order quantity is 1.
- Is 1119312 available?
- Yes — 1119312 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
