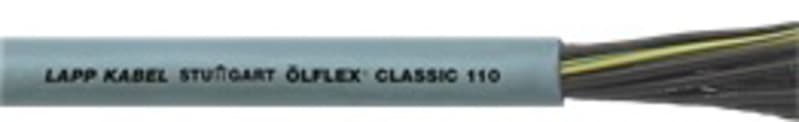

LAPP ÖLFLEX CLASSIC 110 5G1 Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP ÖLFLEX CLASSIC 110 5G1 is a VDE-registered, oil-resistant flexible PVC control cable for fixed installation and occasional flexing under medium mechanical stress — machine tools, plant and mechanical engineering, conveyor and assembly lines, and measuring and control technology. Conductor configuration 5 G 1 mm² (4 × 1 mm² + GN/YE protective conductor). Fine-wire bare-copper conductors to IEC 60228 / EN 60228 class 5; PVC core insulation (LAPP P8/1); black cores with white numbering to VDE 0293-334; cores stranded in layers; grey PVC outer sheath (approx. RAL 7001). Rated voltage U0/U 300/500 V, test voltage 4000 V AC. Outer diameter 7.1 mm, weight 94 kg/km, copper index 48 kg/km. Flame-retardant to IEC 60332-1-2; oil-resistant to DIN EN 50290-2-22. Manufacturer article 1119205, EAN 4044773066906.
Technical Specifications
- Manufacturer
- LAPP Series: ÖLFLEX CLASSIC 110 Manufacturer article no. (MPN): 1119205 EAN / GTIN: 4044773066906 Conductor configuration: 5 G 1 mm² Make-up: 4 × 1 mm² + GN/YE protective conductor Number of cores: 5 Cross-section per core: 1 mm² Protective conductor: green/yellow (GN/YE) Rated voltage U0/U: 300/500 V Test voltage: 4000 V AC (core/core) Conductor: bare copper, fine-wire class 5 (IEC 60228 / EN 60228) Insulation: PVC compound (LAPP P8/1) Core identification: black cores, white numbers (VDE 0293-334) Outer sheath: PVC, grey (approx. RAL 7001) Outer diameter: 7.1 mm Weight: 94 kg/km Copper index: 48 kg/km minimum bending radius: 4 × Ø (fixed) / 10 × Ø (occasional flexing) Temperature range: -40 °C to +80 °C (fixed) / -15 °C to +70 °C (flexing) Flame retardancy: IEC 60332-1-2 / EN 60332-1-2 Oil resistance: DIN EN 50290-2-22 Standards / approval: EN 50525-2-51; VDE reg. no. 7030 HS code: 8544.49 Sales unit: m Package quantity: 500 m
Standards & Compliance
- Standard
- EN 50525-2-51; VDE reg. 7030
- Material
- Bare copper conductor; PVC insulation and sheath
- Temperature Range
- -40 °C to +80 °C (fixed installation)
- Classification / Approval
- VDE registered (reg. no. 7030)
- HS Code
- 8544.49
Cross References
- EAN 4044773066906
- SAP 1000339841
- Code 8373519
Product Documentation
More from LAPP
LAPP
Corrugated Conduit slisset NW24 PP 5M
1222522
LAPP
Roflex 2 X 1 (1070820)
LAPP
LAPP ÖLFLEX CLASSIC 110 34G0.75 Control Cable
1119134
LAPP

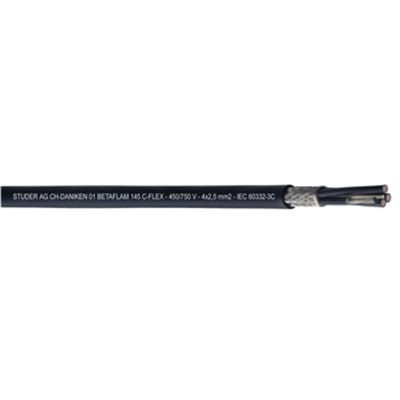

BETAFLAM145°c 7X2X0,5mm²DNV (1111510)
LAPP
Solar panels facade sign red/white 150X50
1857079
LAPP
BETAFLAM145°c 14X2X0,5mm²DNV (1111511)
LAPP
Nipple M16 NW12 straight.
1222364
LAPP
H07 RN-F 3 G 2,5 (1600118)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
