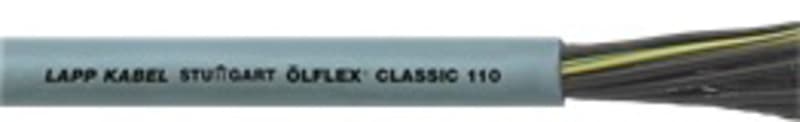

LAPP ÖLFLEX CLASSIC 110 4G1 Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP ÖLFLEX CLASSIC 110 4G1 is a VDE-registered, oil-resistant flexible PVC control cable for fixed installation and occasional flexing under medium mechanical stress — machine tools, plant and mechanical engineering, conveyor and assembly lines, and measuring and control technology. Conductor configuration 4 G 1 mm² (3 × 1 mm² + GN/YE protective conductor). Fine-wire bare-copper conductors to IEC 60228 / EN 60228 class 5; PVC core insulation (LAPP P8/1); black cores with white numbering to VDE 0293-334; cores stranded in layers; grey PVC outer sheath (approx. RAL 7001). Rated voltage U0/U 300/500 V, test voltage 4000 V AC. Outer diameter 6.5 mm, weight 79 kg/km, copper index 38.4 kg/km. Flame-retardant to IEC 60332-1-2; oil-resistant to DIN EN 50290-2-22. Manufacturer article 1119204, EAN 4044773066913.
Technical Specifications
- Manufacturer
- LAPP Series: ÖLFLEX CLASSIC 110 Manufacturer article no. (MPN): 1119204 EAN / GTIN: 4044773066913 Conductor configuration: 4 G 1 mm² Make-up: 3 × 1 mm² + GN/YE protective conductor Number of cores: 4 Cross-section per core: 1 mm² Protective conductor: green/yellow (GN/YE) Rated voltage U0/U: 300/500 V Test voltage: 4000 V AC (core/core) Conductor: bare copper, fine-wire class 5 (IEC 60228 / EN 60228) Insulation: PVC compound (LAPP P8/1) Core identification: black cores, white numbers (VDE 0293-334) Outer sheath: PVC, grey (approx. RAL 7001) Outer diameter: 6.5 mm Weight: 79 kg/km Copper index: 38.4 kg/km minimum bending radius: 4 × Ø (fixed) / 10 × Ø (occasional flexing) Temperature range: -40 °C to +80 °C (fixed) / -15 °C to +70 °C (flexing) Flame retardancy: IEC 60332-1-2 / EN 60332-1-2 Oil resistance: DIN EN 50290-2-22 Standards / approval: EN 50525-2-51; VDE reg. no. 7030 HS code: 8544.49 Sales unit: m Package quantity: 500 m
Standards & Compliance
- Standard
- EN 50525-2-51; VDE reg. 7030
- Material
- Bare copper conductor; PVC insulation and sheath
- Temperature Range
- -40 °C to +80 °C (fixed installation)
- Classification / Approval
- VDE registered (reg. no. 7030)
- HS Code
- 8544.49
Cross References
- EAN 4044773066913
- SAP 1000339840
- Code 8373508
Product Documentation
More from LAPP
LAPP
Solar-Cell Marking Kit
1800750
LAPP
Skintopms-SC-M 20 7,0-12,5
53112630
LAPP
SXXI ALARMCABLE, 1X2X1MM2 White
11139405
LAPP
Unitronic KNX / EIB 2X2X0,8 GREY
1053084
LAPP
ÖLFLEX 2YSLCYK-JB3X1,5+3G0,25 (0036439)
LAPP
LAPP ÖLFLEX CLASSIC 110 3G2.5 Control Cable
1119403
LAPP
ÖLFLEX CLASSIC110 CY 5 G0,75
1135105
LAPP
ÖLFLEX Classic 110 CY 4G4
1135504
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1119204?
- 1119204 can be ordered from cballast.com as a LAPP catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this LAPP product?
- The manufacturer part number is 1119204.
- What is the HS code for 1119204?
- The customs tariff (HS) code for 1119204 is 8544.49.
- Who manufactures 1119204?
- 1119204 is a LAPP product in the Cables & Wiring range.
- Is a datasheet available for 1119204?
- Yes — the 1119204 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1119204?
- The minimum order quantity is 1.
- Is 1119204 available?
- Yes — 1119204 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
