LAPP

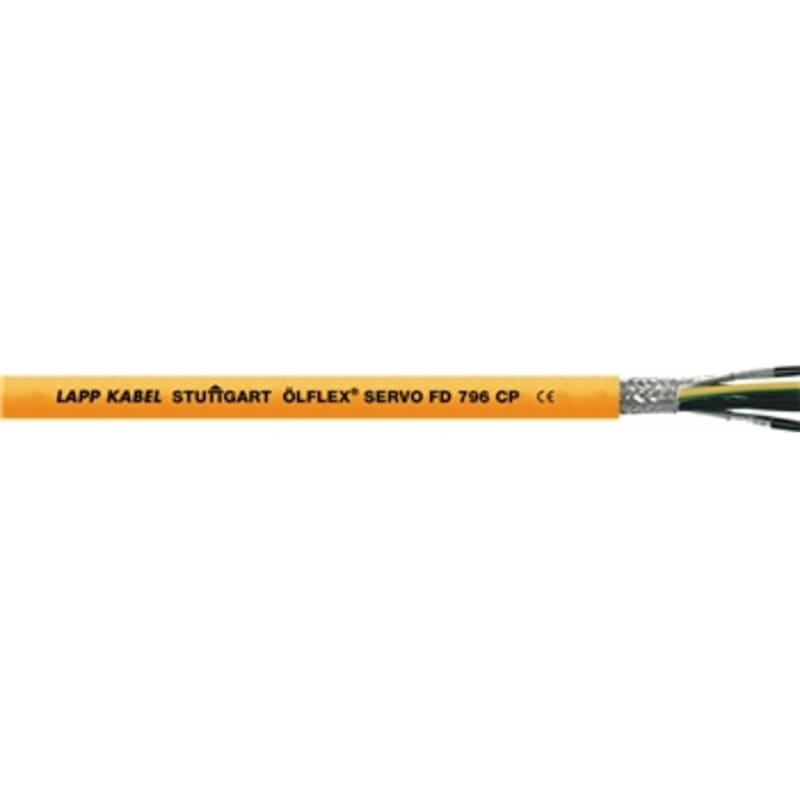

Ölflex® Servo FD 796 CP 4G1,5+2X(2X0,75)
Part number0027969EAN / GTIN4044776105442HS code8544.49
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP 0027969 ÖLFLEX® SERVO FD 796 CP 4G1,5+2x(2x0,75).
Technical Specifications
- Manufacturer part number (MPN)
- 0027969
- EAN / GTIN
- 4044776105442
- Sales unit
- m
- Package quantity
- 500 m
- Model
- Round
- Nominal cross section conductor
- 1.5 mm²
- Weight
- 313 kg/km
- Flame retardant
- According to IEC/EN 60332-1-2
- Nominal voltage U
- 1 kV
- Stranding element
- Pairs
- Colour outer sheath
- Orange
- Shape of conductor
- Round
- Conductor material
- Copper
- Screen over stranding element
- Foil + braiding
- Screen over stranding
- Braiding
- Material outer sheath
- Polyurethane (PUR)
- Conductor category
- Class 6 = very flexible
- Permitted cable outer temperature during assembling/handling
- -40–90 °C
- Torsion resistant
- No
- Number of main cores
- 4
- Nominal cross section main conductors
- 1.5 mm²
- Identification main cores
- Numbers
- Nominal cross section pilot/reduced conductors
- 0.75 mm²
- Number of pilot/reduced conductors
- 4
- Nominal voltage U0
- 0.6 kV
- Screen
- Yes
- Number of cores
- 4
- Suspension element
- None
- Halogen free according to EN IEC 60754-2
- No
- Low smoke according to EN IEC 61034-2
- No
- Max. permitted conductor temperature
- 90 °C
- Outer diameter approximate
- 12.2 mm
- With protective conductor
- Yes
- Oil resistant according to EN IEC 60811-404
- Yes
- Conductor surface
- Bare
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- Cable geometry
- Round
- Core identification according to HD 308 S2
- No
- Flame retardant according to IEC 60332-1-2
- Yes
- Flame retardant according to IEC 60332-3-21 (Cat A F/R)
- No
- Flame retardant according to IEC 60332-3-22 (Cat A)
- No
- Flame retardant according to IEC 60332-3-23 (Cat B)
- No
- Flame retardant according to IEC 60332-3-24 (Cat C)
- No
- Flame retardant according to IEC 60332-3-25 (Cat D)
- No
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-3
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 4044776105442
- SAP 1200230907
- Code 82317363
Product Documentation
Document preview: Ölflex® Servo FD 796 CP 4G1,5+2X(2X0,75) (0027969) — Specification sheet
