LAPP
Ølflex 2YSLCY-JB 4G6
Part number1000019EAN / GTIN4044773062809HS code8544.42
Cables & Wiring
VFD & Motor Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP 1000019 EMC / VFD Variable-frequency drive cable.
Technical Specifications
- Manufacturer part number (MPN)
- 1000019
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1000019
- EAN / GTIN
- 4044773062809
- ETIM class
- EC003251 - Power cable >= 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Italy
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 630 g
- Price units per base unit
- 1
- Nominal voltage U (kV)
- 1
- Nominal cross section conductor (mm²)
- 6
- Nominal voltage U0 (kV)
- 0.6
- Number of cores
- 4
- Number of pilot/reduced conductors
- 0
- Outer diameter approximate (mm)
- 17
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 68
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -5 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- Screen
- Yes
- With protective conductor
- Yes
- Flame retardant according to IEC 60332-1-2
- Yes
- Suitable as installation cable
- Yes
- Core identification according to HD 308 S2
- No
- Laminated sheath
- No
- Fibre optic elements
- No
- Inner semi-conducting layer
- No
- Outer semi-conducting layer
- No
- Drain wire
- No
- Lead sheath
- No
- Radial water blocking cable
- No
- Conductive coating
- No
- Longitudinal water blocking conductors
- No
- Longitudinal water blocking screen
- No
- Flame retardant according to IEC 60332-3-21 (Cat A F/R)
- No
- Flame retardant according to IEC 60332-3-22 (Cat A)
- No
- Flame retardant according to IEC 60332-3-23 (Cat B)
- No
- Flame retardant according to IEC 60332-3-24 (Cat C)
- No
- Flame retardant according to IEC 60332-3-25 (Cat D)
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- 4044773062809
Product Documentation
Document preview: ØLFLEX 2YSLCY-JB 4G6 (1000019) — Data Sheet (OEM, Norwegian)
More from LAPP
LAPP
ÖLFLEX Classic 135 CH 5G1,5
1123311
LAPP
Olflex® Spiral 400P 3G1,5 1500mm
70002689
LAPP
ÖLFLEX Classic 135 CH12G0,75
1123247
LAPP
ÖLFLEX-CLASSIC-110 CY 12X0,75
1135812
LAPP
Ölflex Petro FD 865 CP 7G1,5
0023337
LAPP
Ölflex Petro FD 865 CP 2X0,75
0023311
LAPP
Nipple M40 NW36 straight.
83156296
LAPP

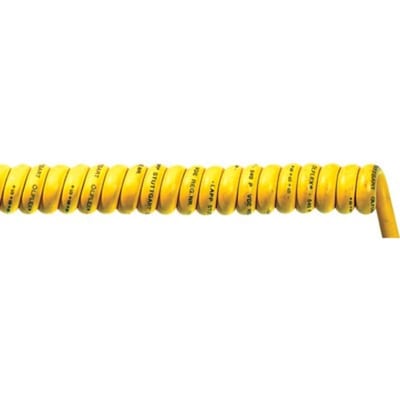

Olflex® Spiral 540P 7G1 1200mm
