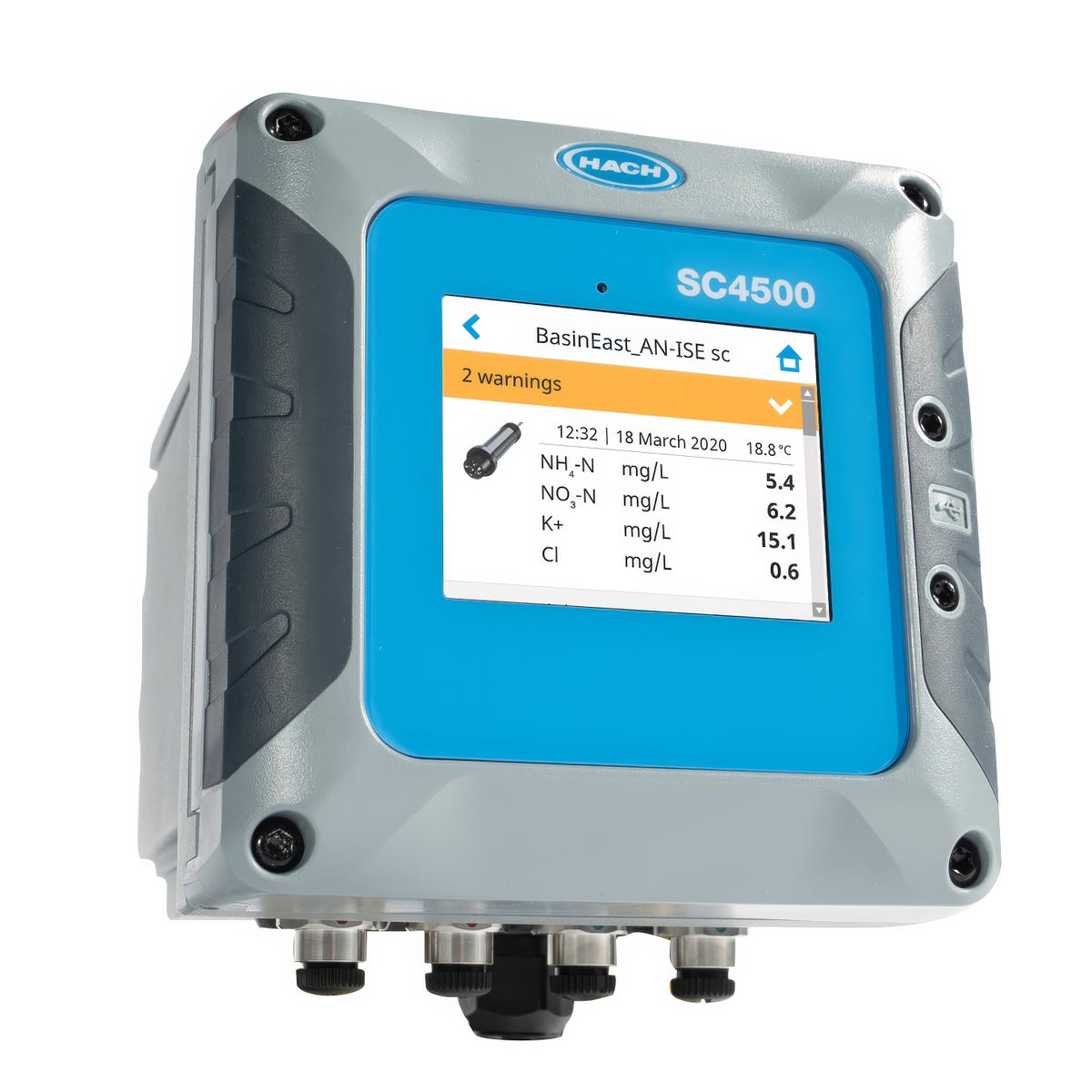

SC4500 Controller, 1DIG.+1 analog pH/ORP — 5X mA Output, Prognosys,100-240 VAC

Hach SC4500 Controller, 1DIG.+1 analog pH/ORP — 5X mA Output, Prognosys,100-240 VAC. Reference part number LXV525.99A11511.

Supply voltage

100–240 V AC

Altitude

3000 m (9842 ft) maximum

Analog Output Functional Mode

Linear, PID

Communication (optional)

Analog; Five 0-20 mA or 4-20 mA analog outputs on each analog output module; Up to two analog Input modules (0-20 mA or 4-20 mA). Each input module replaces a digital sensor input.; Digital; Profibus DPV1 module; Modbus TCP; Profinet IO module; Ethernet IP module

Compatible Network Technologies

GSM 3G/4G (e.g. AT&T, T-Mobile, Rogers, Vodafone etc.); CDMA (e.g. Verizon)

Compliance Certifications

CE. ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC, UKCA, SABS, C م (Morocco)

Conduit Openings

½" NPT conduit

Description

Microprocessor-controlled and menu-driven controller that operates the sensor

Dimensions

½ DIN - 144 x 144 x 192 mm (5.7 x 5.7 x 7.6 in.)

Display

3.5-inch TFT colour display with capacitive touchpad

Enclosure Rating

UL50E type 4X, IEC/EN 60529–IP 66, NEMA 250 type 4X; Metal enclosure with a corrosion-resistant finish

Indoor/Outdoor

Outdoor installation in direct sunlight or UV radiation requires UV protection screen and/or sunroof

Installation Category

Category II

Material Enclosures

Polycarbonate, aluminum (powder coated), stainless steel

Measurements

Two device digital SC connectors

Mounting

Wall, Pole, or Panel Mounting

Network Connectivity

LAN: Two Ethernet connectors (10/100 Mbps); Cellular: External 4G; Wi-Fi

Operating Temperature Range

-20 to 60 °C (-4 to 140 °F) (8 W (AC)/9 W (DC) sensor load); -20 to 45 °C (-4 to 113 °F) (28 W (AC)/20 W (DC) sensor load); Linear derating between 45 and 60 °C (-1.33 W/°C)

Outputs

5x mA Output

Pollution Degree

4

Power Requirements (Voltage)

100 - 240 VAC ±10%, 50/60 Hz; 1 A

Power Supply

Without power cord

Protection Class

I, connected to protective earth

Relays

Two relays (SPDT); Wire gauge: 0.75 to 1.5 mm² (18 to 16 AWG); Maximum switching voltage: 100 - 240 VAC; Maximum switching current: 5 A Resistive/1 A Pilot Duty; Maximum switching power: 1200 VA Resistive/360 VA Pilot Duty

Sensor Input #1

Digital

Sensor Input #2

Analog pH/ORP

Software available

Non-Claros + Embedded Prognosys

Storage Conditions

-20 - 70 °C (-4 - 158 °F), 0 - 95% relative humidity, non-condensing

USB Port

Used for data download and software upload. The controller records approximately 20,000 data points for each connected sensor.

Warranty

12 months

Weight

3.7 lb (controller only, w/o modules)

What's included

SC4500 Controller, Claros-enabled, with EU plug; includes mounting hardware

HS Code

9027.89
