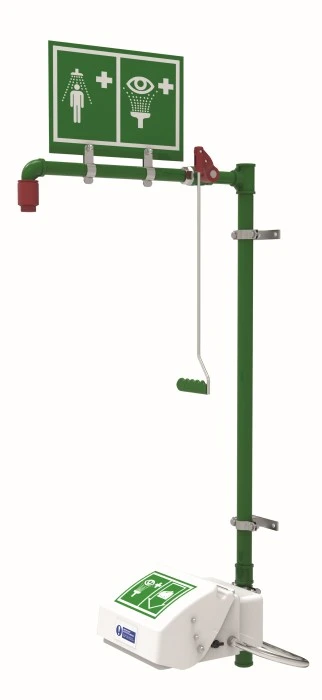

Wall Mount, Closed ABS Bowl, Hughes Combination Shower, Galvanized Pipe - 33G45G

Be prepared to respond to accidents with this all-in-one wall mounted combination safety shower with top water inlet that provides initial on-site treatment to eye/face or full body exposure to hazards. Suitable for use in applications that are not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, eas

Manufacturer part number (MPN)

33G45G Brand: Justrite Category: Tools Net Weight, lbs: 39.7 Net Weight, kg: 18 Dimensions, Exterior: 66.7" H x 19.8" W x 29" D (1695mm H x 504mm W x 504mm D) Height Without Sign, inches: 56.0 Height Without Sign, mm: 1421 UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1-1/4 in (F) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: Shower: 316L Stainless, Eyewash: Chrome plated brass Eye/Face Wash Bowl material: Acrylic-Capped ABS Plastic Mounting Type: Wall Pipework material: Galvanized Steel Activation Method: Shower: Pull Handle, Eye/Face wash: Pull Lid Forward Eye/Face Wash Bowl Interior Dimensions: 9.5" W x 8" D minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000311

• OEM-URL https://www.justrite.com/combination-shower-wall-mount-closed-abs-bowl-galvanized-pipe-33g45g
