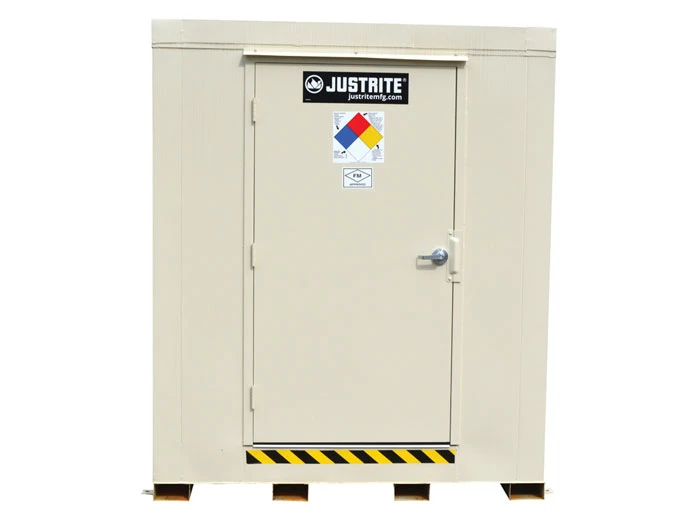

16-drum, 4-Hour Fire-Rated Outdoor Safety Locker
Pricing
Request a quote
We reply within 24 hours
Product Description
Standard features include:4-hour fire-rated construction — backed by a 15-year structural warranty3-hour fire-rated door — third party tested and labeledGravity air flow vents — UL Listed fire dampers with fusible linksSecondary containment — leakproof all welded sumpRemovable, galvanized steel grate flooring42-inch (1.07-m) wide door with UL listed, keyed lockset for securityDoor closer — ensures doors close automaticallyNFPA 704 diamond decal provides "Right to Know" informationMultiple static
Technical Specifications
- Manufacturer part number (MPN)
- 913160 Brand: Justrite Category: Tools Color: Bone material Specifications: Steel FM Approval: Yes UL Approval: Doors Complies with NFPA Code 30: Yes Complies with NFPA 1 Fire-Code: Yes EPA Compliance: Yes Dimensions, Exterior: 99" H x 119" W x 114" D (2515mm H x 3023mm W x 2896mm D) Dimensions, Interior: 81" H x 98.5" W x 98.5" D (2057mm H x 2502mm W x 2502mm D) 55-Gallon drum Capacity: 16 Base Capacity, lbs: 16000 Base Capacity, kg: 7257.5 Number of Doors: 1 Door Type: Fire-rated Door Hinge: Left Door Height inch: 80 Door Width inch: 42 Door Height mm: 2032 Door Width mm: 1067 Sump Capacity - Gallons: 272 Sump Capacity - liters: 1030 Sump Depth - inch: 7.0 Sump Depth - mm: 178 Storage Capacity cubic feet (Int Volume): 455 Storage Capacity cubic meters (Int Volume): 12.9 Net Weight, lbs: 7826.0 Net Weight, kg: 3549.9 UPC: 697841158818
Cross References
- OEM-URL https://www.justrite.com/4-hour-fire-rated-outdoor-safety-locker-16-drum-913160
Product Documentation
More from Justrite
Justrite
6, 9 drum (205, 296 Cu Ft), Explosion Proof Heater, Air Conditioner Package for Outdoor Safety Lockers
915309
Justrite
12, 16 drum (387, 506 Cu Ft), Explosion Proof Heater, Air Conditioner Package for Outdoor Safety Lockers
915311
Justrite
2 drum (52 Cu Ft), Fire Protection, Basic - FE-227 Extinguisher Unit for Outdoor Safety Locker
915401
Justrite
4- 16 drum (105- 506 Cu Ft), Fire Protection, Basic - FE-227 Extinguisher Unit for Outdoor Safety Lockers
915403
Justrite
6- 16 drum (205- 506 Cu Ft), Fire Suppression, Dry Chemical System for Outdoor Safety Lockers
915405
Justrite
Electrical Package, Explosion Proof Interior Light and Fan for Outdoor Safety Lockers
915501
Justrite
50 Hz, Electrical Package, Explosion Proof Interior Light and Fan for Outdoor Safety Lockers
915502
Justrite
Electrical Package, Explosion Proof Exterior Light with Photocell for Outdoor Safety Lockers
915503
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 913160?
- 913160 can be ordered from cballast.com as a Justrite catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Justrite product?
- The manufacturer part number is 913160.
- Who manufactures 913160?
- 913160 is a Justrite product in the Safety & Detection range.
- Is a datasheet available for 913160?
- Yes — the 913160 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 913160?
- The minimum order quantity is 1.
- Is 913160 available?
- Yes — 913160 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for 913160?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
