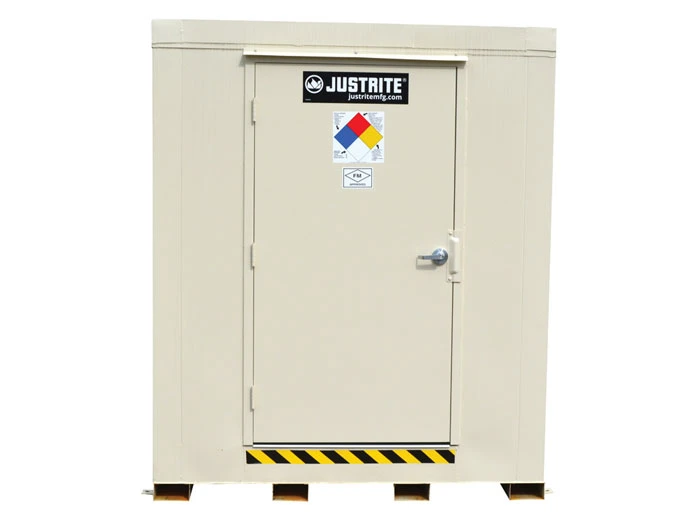

12-drum, Explosion Relief Panels, 2-Hour Fire-Rated Outdoor Safety Locker

Outdoor safety lockers with explosion relief panels are required for the safe storage of Class 1A or the dispensing of Class 1A and 1B flammable liquids (as defined by NFPA). Please check with the local authority having jurisdiction to ensure all local regulations, including set-back requirements and the correct wall/roof rating needed for your application.Standard features include:Explosion relief panels designed to release at 20 psf2-hour fire-rated construction — backed by a 15-year structura

Manufacturer part number (MPN)

912121 Brand: Justrite Category: Tools Color: Bone material Specifications: Steel FM Approval: Yes UL Approval: Doors Complies with NFPA Code 30: Yes Complies with NFPA 1 Fire-Code: Yes EPA Compliance: Yes Dimensions, Exterior: 99" H x 88" W x 119" D (2515mm H x 2235mm W x 3023mm D) Dimensions, Interior: 82.5" H x 77.5" W x 101.5" D (2096mm H x 1969mm W x 2578mm D) 55-Gallon drum Capacity: 12 Base Capacity, lbs: 12000 Base Capacity, kg: 5443.1 Number of Doors: 1 Door Type: Fire-rated Door Hinge: Left Explosion Relief Panels: (2) - 48-in x 48-in Door Height inch: 80 Door Width inch: 42 Door Height mm: 2032 Door Width mm: 1067 Sump Capacity - Gallons: 221 Sump Capacity - liters: 837 Sump Depth - inch: 7.0 Sump Depth - mm: 178 Storage Capacity cubic feet (Int Volume): 376 Storage Capacity cubic meters (Int Volume): 10.6 Net Weight, lbs: 5105.0 Net Weight, kg: 2315.6 UPC: 697841158689
