Jacob
Nipple M50 (24-35) EMC Brass
Part number50.650 M/EMVEAN / GTIN4024092049422HS code7419.80
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

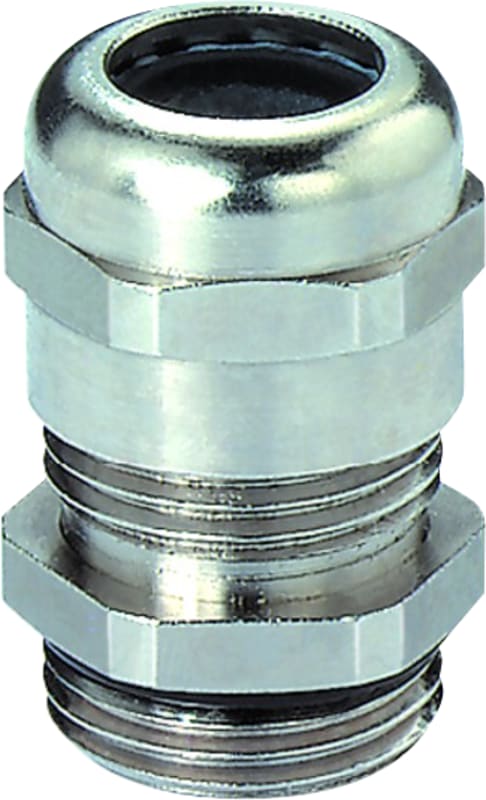

Jacob 50.650 M/EMV PERFECT Cable gland in brass EMC M50. Light opening 24-35mm.
Technical Specifications
- Manufacturer part number (MPN)
- 50.650 M/EMV
- EAN / GTIN
- 4024092049422
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Thread size
- M50
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 50
- Pitch thread
- 1.5 mm
- Thread length
- 9 mm
- Wrench width
- 55 mm
- Suitable for cable diameter
- 24–35 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Operating temperature
- -20–100 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- Yes
- EMC-version
- Yes
- Country of origin
- Taiwan
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 4024092049422
- SAP 1000226041
- Code 8971198
Product Documentation
Document preview: Nipple M50 (24-35) EMC Brass (50.650 M/Emv) — Specification sheet
