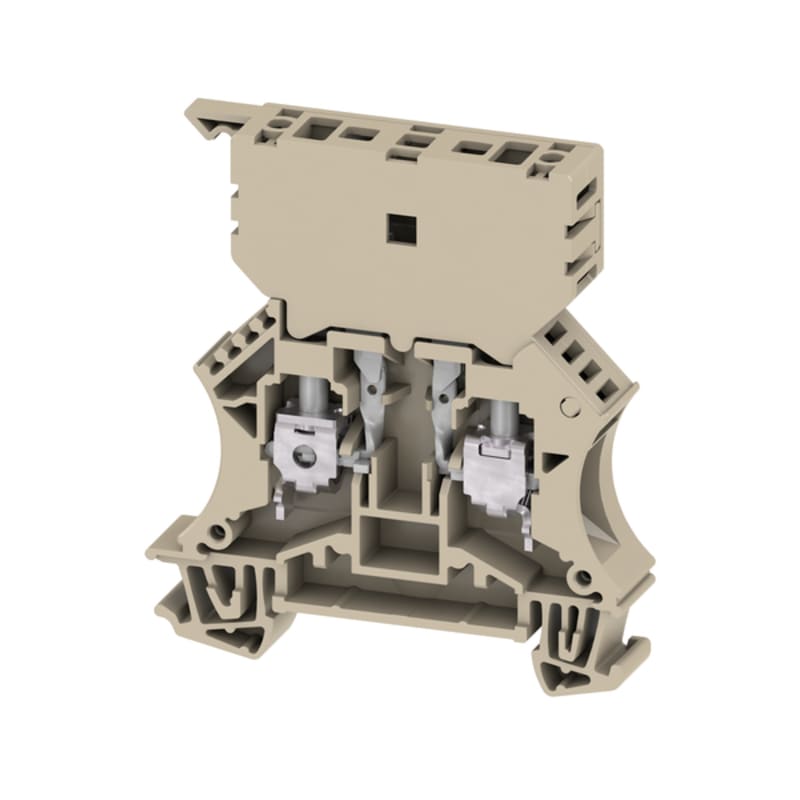

J.f.knudtzen Terminal, Screw connection, Fuse insulator, for screwable cross-connection, One end without connector
Pricing
Request a quote
We reply within 24 hours
Product Description
J.f.knudtzen WSI 6/2 GZ/DEF63 Terminal, Screw connection, Fuse insulator, for screwable cross-connection, One end without connector.
Technical Specifications
- Manufacturer part number (MPN)
- WSI 6/2 GZ/DEF63
- EAN / GTIN
- 4008190006723
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Type of fuse insert
- G-fuse 6.3x32 mm
- Type of fuse holder
- Swivelling
- Type of indication element for defect indication
- None
- Supply voltage for defect-indication
- 500 V
- Voltage type for defect indication
- AC
- Connectable conductor cross section solid-core
- 0.5–10 mm²
- Connectable conductor cross section multi-wired
- 0.5–10 mm²
- Rated current In
- 10 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Mounting method
- DIN rail (top hat rail) 35 mm
- Connection position
- Sideways
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 11.9 mm
- Width/grid dimension
- 11.9 mm
- Height
- 60 mm
- Depth
- 66.5 mm
- Closing plate required
- Yes
- Length
- 60 mm
- Colour
- Beige
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190006723
- SAP 1000479098
- Code 8747355
