J.f.knudtzen

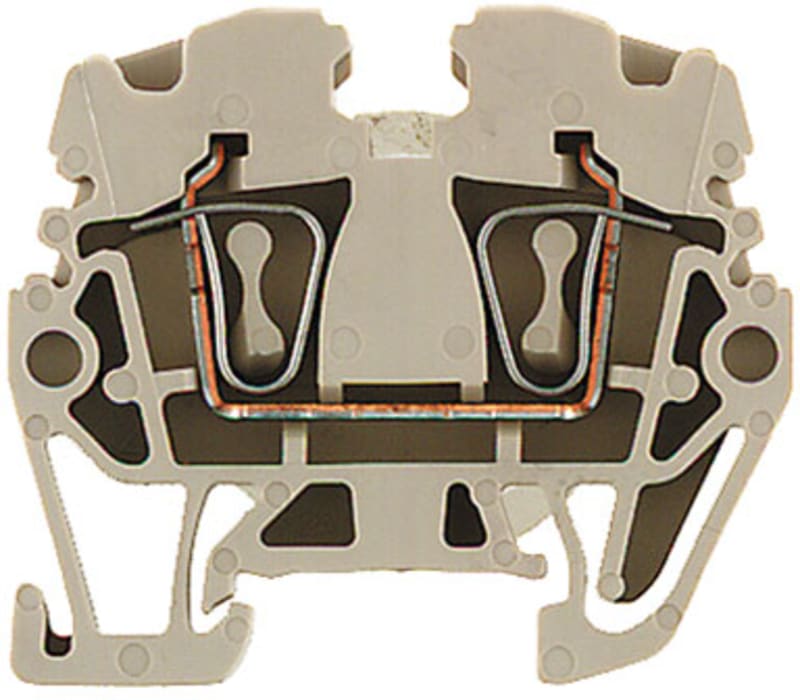

ZDUA 2,5-2 (zdua 2.5-2)
Part numberZDUA 2.5-2EAN / GTIN4008190376789HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
J.f.knudtzen ZDUA 2.5-2 Feed-through terminal block, Tension-clamp connection, 2.5 mm², 500 V, 24 A, Number of connections: 2.
Technical Specifications
- Manufacturer part number (MPN)
- ZDUA 2.5-2
- EAN / GTIN
- 4008190376789
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.13–4 mm²
- Connectable conductor cross section multi-wired
- 0.13–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 15 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 5.1 mm
- Width/grid dimension
- 5.1 mm
- Height
- 35 mm
- Depth
- 30 mm
- Length
- 35 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190376789
- SAP 1000206328
- Code 859263
Product Documentation
Document preview: ZDUA 2,5-2 (zdua 2.5-2) — Specification sheet
