ZDU 2,5-2/3 AN (zdu 2.5-2/3AN)
Pricing
Request a quote
We reply within 24 hours
Product Description

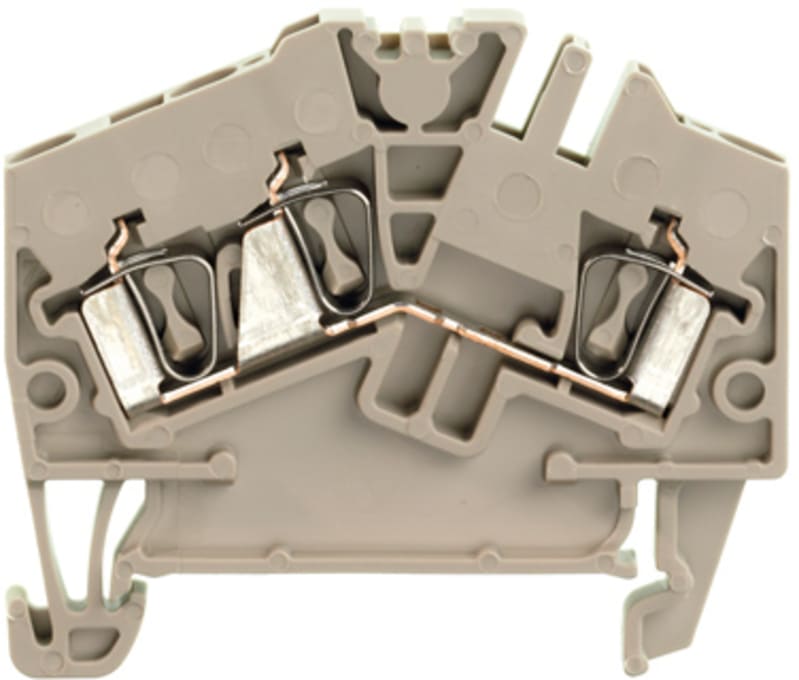

J.f.knudtzen ZDU 2.5-2/3AN Feed-through terminal block, Tension-clamp connection, 2.5 mm², 800 V, 24 A, Number of connections: 3.
Technical Specifications
- Manufacturer part number (MPN)
- ZDU 2.5-2/3AN
- EAN / GTIN
- 4008190915377
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.13–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.13–0.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Inclined
- Number of levels
- 1
- Number of clamp positions per level
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 5.1 mm
- Width/grid dimension
- 5.1 mm
- Height
- 50.5 mm
- Depth
- 43 mm
- Length
- 50.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190915377
- SAP 1000204651
- Code 853461
Product Documentation
