J.f.knudtzen

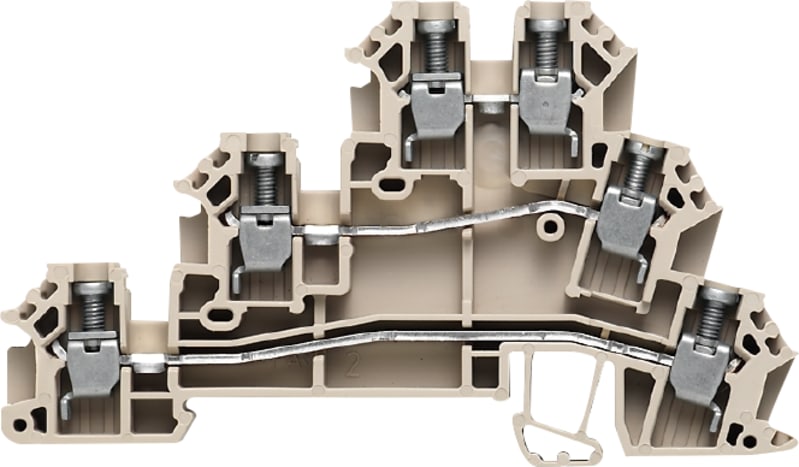

DLD 2,5 DB (dld 2.5 Db)
Part numberDLD 2.5 DBEAN / GTIN4032248189854HS code8536.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
J.f.knudtzen DLD 2.5 DB Initiator/actuator terminal, Screw connection, 2.5 mm², 250 V, 24 A, Number of connections: 6, Number of potentials per tier: 1.
Technical Specifications
- Manufacturer part number (MPN)
- DLD 2.5 DB
- EAN / GTIN
- 4032248189854
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Connectable conductor cross section solid-core
- 0.13–4 mm²
- Connectable conductor cross section multi-wired
- 0.13–4 mm²
- Rated current In
- 24 A
- Rated voltage
- 250 V
- Number of levels
- 3
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Type of electrical connection 1
- Screw connection
- Connection position
- Sideways
- Mounting method
- DIN rail (top hat rail) 35 mm
- Cross connectable
- Yes
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 6.2 mm
- Width/grid dimension
- 6.2 mm
- Height
- 82.5 mm
- Depth
- 48.5 mm
- Explosion-tested version 'Ex e'
- No
- Length
- 48.5 mm
- Closing plate required
- Yes
- Colour
- Beige
- With PE connection
- No
- With shield connection
- No
- With power supply function
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4032248189854
- SAP 1000224466
- Code 8937918
Product Documentation
Document preview: DLD 2,5 DB (dld 2.5 Db) — Specification sheet
More from J.f.knudtzen
J.f.knudtzen
ZDK 2.5 BL (1678630000)
J.f.knudtzen
H50,0/36 OLIV (H50/36 Oliv)
H50/36 OLIV
J.f.knudtzen
DYMO TAPE 9mm RED ON White
S0720700 / 40915
J.f.knudtzen
J.f.knudtzen Terminal, PUSH IN, 10 mm² A2C 10
J.f.knudtzen
END CAP A2 (3010831903082)
J.f.knudtzen
CLI R 1-3 MRK 1 Yellow Pin M25
CLI R 1-3 GE/SW 1
J.f.knudtzen
END CAP A1 (3010831903081)
J.f.knudtzen
END CAP A3 (3010831903080)
Catalogue entry last verified: 2026-08-20. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
