J.f.knudtzen

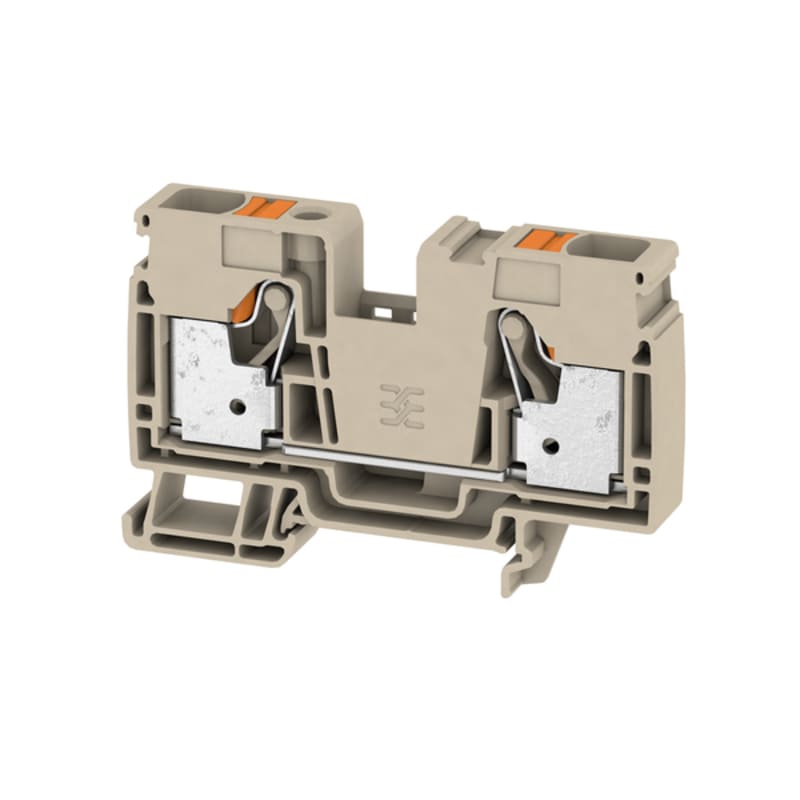

J.f.knudtzen Terminal, PUSH IN, 16 mm²
Part numberA2C 16EAN / GTIN4050118504019HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
J.f.knudtzen A2C 16 Terminal, PUSH IN, 16 mm².
Technical Specifications
- Manufacturer part number (MPN)
- A2C 16
- EAN / GTIN
- 4050118504019
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Conductor cross-section
- 16 mm²
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.5–16 mm²
- Connectable conductor cross section multi-wired
- 0.5–25 mm²
- Rated current In
- 76 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Push-in clamp connection
- Type of electrical connection 2
- Push-in clamp connection
- Connection position
- Atop
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 12 mm
- Width/grid dimension
- 12 mm
- Height
- 80.5 mm
- Depth
- 51.5 mm
- Length
- 80.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050118504019
- SAP 1200139956
- Code 82036814
Product Documentation
Document preview: J.f.knudtzen Terminal, PUSH IN, 16 mm² — Specification sheet
