xirodur® B180 gears, mm
Pricing
Request a quote
We reply within 24 hours
Overview

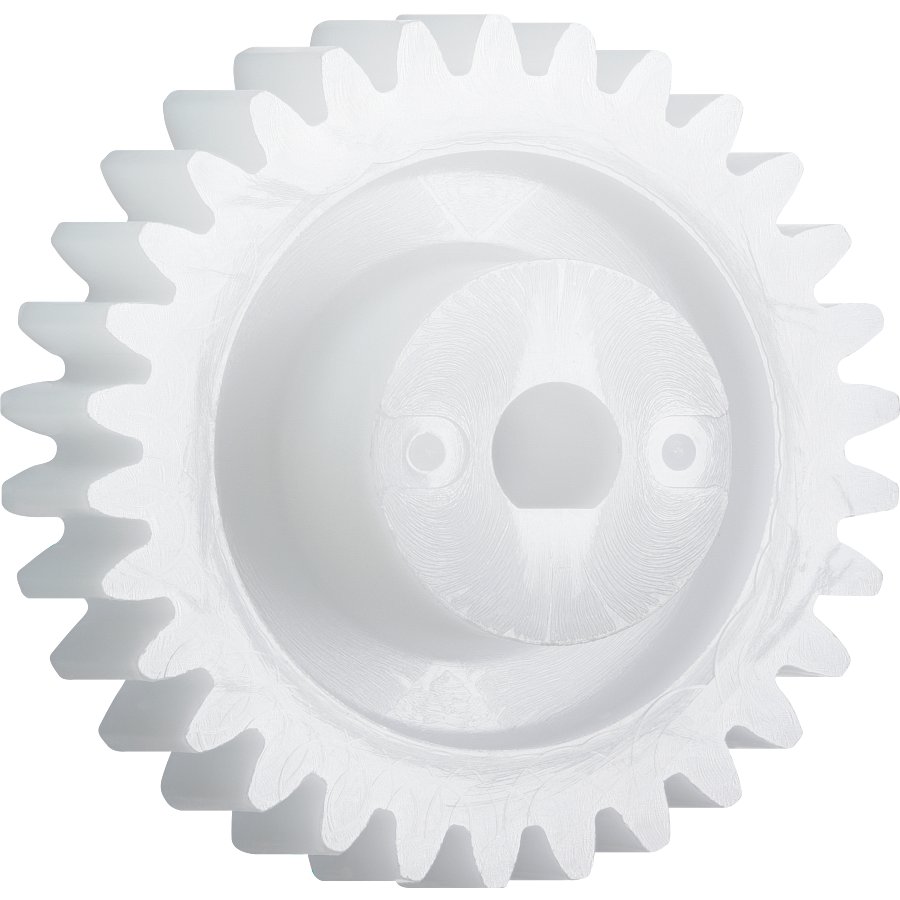

igus xirodur® B180 gears, mm (part number B180GM-ST-1-20-00-060-PF) is listed under Safety & Detection / Tools. Module: 1; Material: xirodur B180; Weight: 4.386 g; Colour: White; Shipping weight (kg or kg/m): 0.004386; Density: 1.42 g/cm³.
Technical Specifications
- Manufacturer part number (MPN)
- B180GM-ST-1-20-00-060-PF
- Brand
- IGUS
- Category
- Tools
- Number of teeth
- 20
- Module
- 1
- Material
- xirodur B180
- Weight
- 4.386 g
- Colour
- White
- Shipping weight (kg or kg/m)
- 0.004386
- Density
- 1.42 g/cm³
- Max. moisture absorption test method
- Test method DIN 53495
- Hub design
- Feather key
- b2 tooth width
- 9 mm
- Ø d1 bore diameter
- 6 mm
- Ø d5 crown circle diameter
- 22 mm
- b1 overall length
- 15 mm
- Max. long-term application temperature
- 100 °C
- Lower application temperature
- -40 °C
- Modulus of elasticity
- 2500 MPa
- Modulus of elasticity test method
- Test method DIN 53457
- Flexural strength (at 20°C/68°F)
- 68 MPa
- Flexural strength (at 20°C/68°F) test method
- Test method DIN 53452
Standards & Compliance
- HS Code
- 8483.40
Cross References
- OEM-URL https://www.igus.com/product/iglidur_B180GM-ST
Product Documentation
