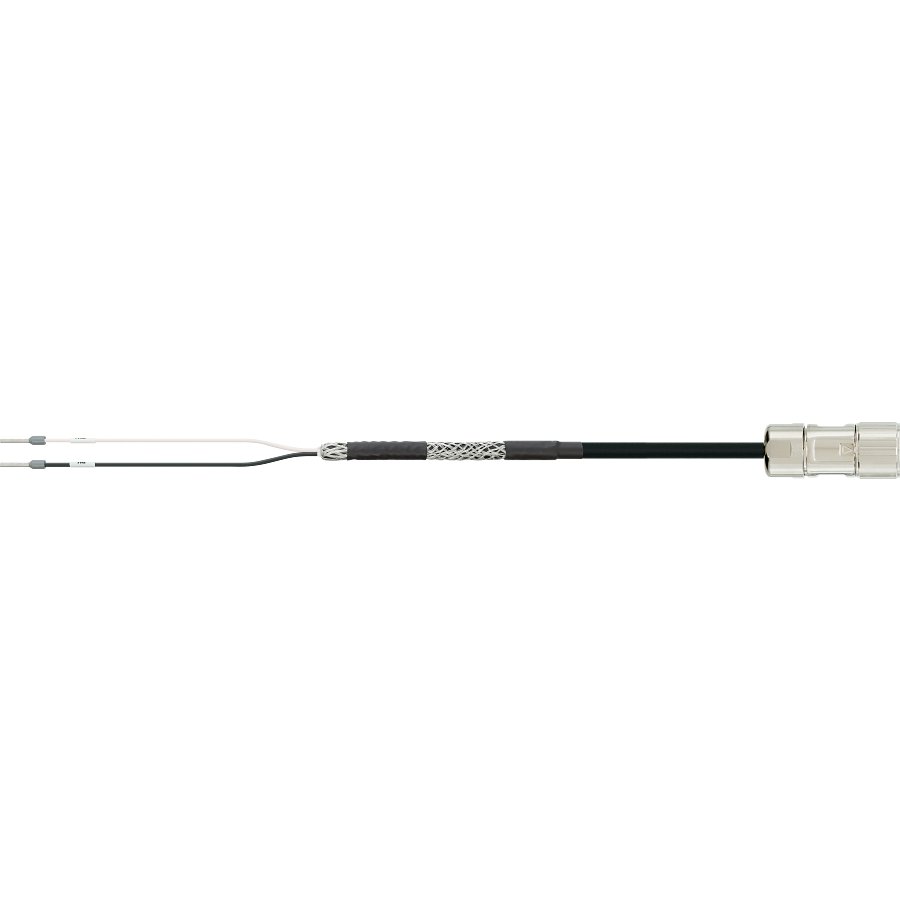

readycable® signal cable suitable for Siemens 6FX3_02-5BL03, basic cable, PVC 12.5XD (MAT9411501)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® signal cable suitable for Siemens 6FX3_02-5BL03, basic cable, PVC 12.5XD (MAT9411501) is listed under Safety & Detection / Tools. Connector A: Cable socket, 2-pin; Connector B: Wire end sleeve; Copper index kg/km: 30 kg/km; Shipping weight (kg or kg/m): 0.1293868; Outer diameter (d) max. mm: 6.5 mm; Weight per km: 50 kg/km.
Technical Specifications
- Manufacturer part number (MPN)
- 6FX3_02-5BL03
- Brand
- IGUS
- Category
- Tools
- Connector A
- Cable socket, 2-pin
- Connector B
- Wire end sleeve
- Number of cores and conductor nominal cross-section
- (2x0.75)C
- Copper index kg/km
- 30 kg/km
- Shipping weight (kg or kg/m)
- 0.1293868
- Outer diameter (d) max. mm
- 6.5 mm
- Weight per km
- 50 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 81.25 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 65 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 45.5 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT9411501
Product Documentation
More from igus
igus
readycable® brake cable suitable for Allen Bradley 2090-UXNBMP-18S, base cable PVC 12.5 x d (MAT9411719)
2090-UXNBMP-18SXX
igus
readycable® control cable suitable for Mitsubishi Electric MR-PWS1CBL-XXX-A2-H, base cable, PVC 15 x d (MAT9412003)
igus
readycable® control cable suitable for Omron R88A-CAWCXXXB-E, base cable PVC 12.5 x d (MAT9412101)
igus
readycable® control cable suitable for Omron R88A-CAWEXXXB, base cable PVC 12.5 x d, with green and yellow protective cable (MAT9412107)
igus
readycable® servo cable suitable for Stöber size 1-MOTOR-2,5 mm², base cable PUR 7.5 x d (MAT9420003)
GR.1-MOTOR-2,5MM²
igus
readycable® servo cable suitable for Stöber size 1-MOTOR-1,0 mm², base cable PUR 7.5 x d (MAT9420001)
GR.1-MOTOR-1,0MM²
igus
readycable® control cable suitable for Omron JZSP-CSM22-XX-E-G1, base cable PVC 12.5 x d (MAT9412102)
igus
readycable® servo cable suitable for Stöber size 1-MOTOR-4,0 mm², base cable PUR 7.5 x d (MAT9420004)
GR.1-MOTOR-4,0MM²
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6FX3_02-5BL03?
- 6FX3_02-5BL03 can be ordered from cballast.com as a igus catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this igus product?
- The manufacturer part number is 6FX3_02-5BL03.
- What is the HS code for 6FX3_02-5BL03?
- The customs tariff (HS) code for 6FX3_02-5BL03 is 8544.42.
- Who manufactures 6FX3_02-5BL03?
- 6FX3_02-5BL03 is a igus product in the Safety & Detection range.
- Is a datasheet available for 6FX3_02-5BL03?
- Yes — the 6FX3_02-5BL03 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6FX3_02-5BL03?
- The minimum order quantity is 1.
- Is 6FX3_02-5BL03 available?
- Yes — 6FX3_02-5BL03 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
