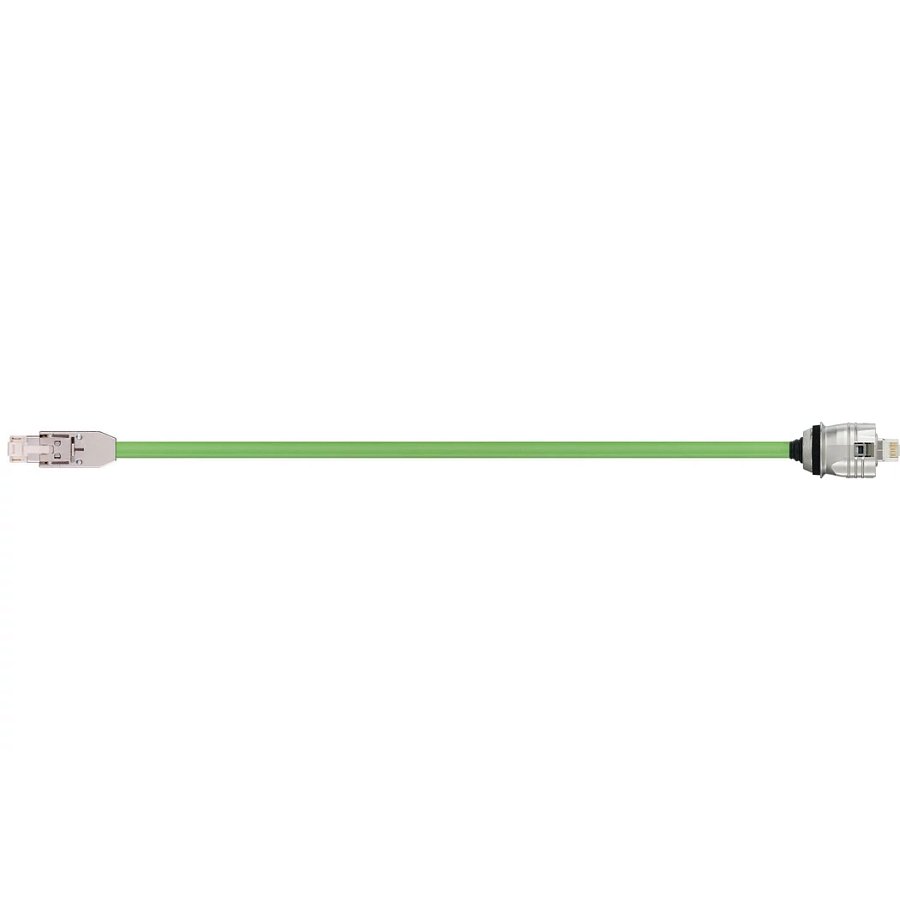

readycable® signal cable suitable for Siemens 6FX_002-2DC10, base cable PUR 7.5 x d (MAT9070030)

igus readycable® signal cable suitable for Siemens 6FX_002-2DC10, base cable PUR 7.5 x d (MAT9070030) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: connector, RJ45 Y-CONKIT-COV-20-TC-PL21; Connector B: connector, RJ45 Y-CONKIT IP67; Copper index kg/km: 44 kg/km; Core group 1 core structure: 2x(2x0.20); Core group 1 colour code: green/yellow, pink/blue.

Manufacturer part number (MPN)

6FX_002-2DC10

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

connector, RJ45 Y-CONKIT-COV-20-TC-PL21

Connector B

connector, RJ45 Y-CONKIT IP67

Number of cores and conductor nominal cross-section

(2x(2x0.20)+(2x0.38))C

Copper index kg/km

44 kg/km

Core group 1 core structure

2x(2x0.20)

Core group 1 colour code

green/yellow, pink/blue

Core group 2 core structure

(2x0.38)

Core group 2 colour code

red/black

Shipping weight (kg or kg/m)

0.08232

Outer diameter (d) max. mm

7.5 mm

Weight per km

69 kg/km

Min. bend radius, e-chain (factor)

7.5 x d

Min. bend radius, e-chain

56.25 mm

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

45 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

30 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

5 m/s

a max. (acceleration)

50 m/s²

travel length

Unsupported travel distances and up to 100 m for gliding applications

torsion

No Torsion

Conductor

Stranded conductor in an especially flexible design consisting of tinned copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

CFRIP®

Strip cables faster: a tear strip is moulded into the inner jacket

Nominal voltage

50V

Test voltage

500V

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 1589 and 20236, 30 V, 80 °C

UL verified

Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"

DESINA

According to VDW, DESINA standardisation

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

DNV

Type approval certificate TAE00003X4

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
