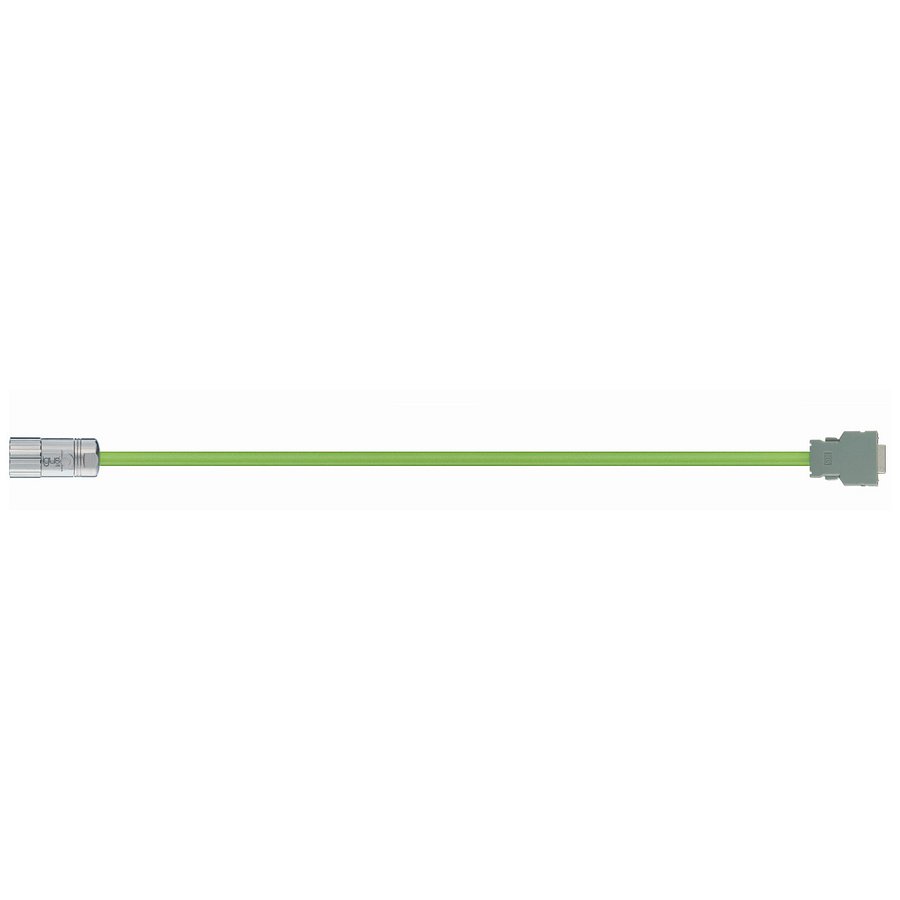

readycable® signal cable suitable for Fanuc LX660-4077-T319, base cable PUR 10 x d (MAT9300319)

igus readycable® signal cable suitable for Fanuc LX660-4077-T319, base cable PUR 10 x d (MAT9300319) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: round plug, socket; Connector B: rectangular connector, pin; Copper index kg/km: 80 kg/km; Core group 1 core structure: (4x0.25); Core group 1 colour code: white/brown/grey/black.

Manufacturer part number (MPN)

LX660-4077-T319

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

round plug, socket

Connector B

rectangular connector, pin

Number of cores and conductor nominal cross-section

((4x0.25)+3x(2x0.25+2x0.5))C

Copper index kg/km

80 kg/km

Core group 1 core structure

(4x0.25)

Core group 1 colour code

white/brown/grey/black

Core group 2 core structure

3x2x0.25

Core group 2 colour code

white/yellow, white/grey, black/orange

Core group 3 core structure

3x2x0.5

Core group 3 colour code

black no. 3/black no. 4,black no. 5/black no. 6,black no. 1/black no. 2

Shipping weight (kg or kg/m)

0.08461

Outer diameter (d) max. mm

9.5 mm

Weight per km

117 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

95 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

76 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

47.5 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

5 m/s

v max. gliding (speed)

3 m/s

a max. (acceleration)

30 m/s²

travel length

Travels up to 10 m

torsion

No Torsion

Conductor

Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires.

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Liner

Foil taping over the outer layer.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Element shield

Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

Nominal voltage

50V

Test voltage

500V

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10467 and 20233, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

DESINA

According to VDW, DESINA standardisation

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

DNV

Type approval certificate TAE00003X4

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
