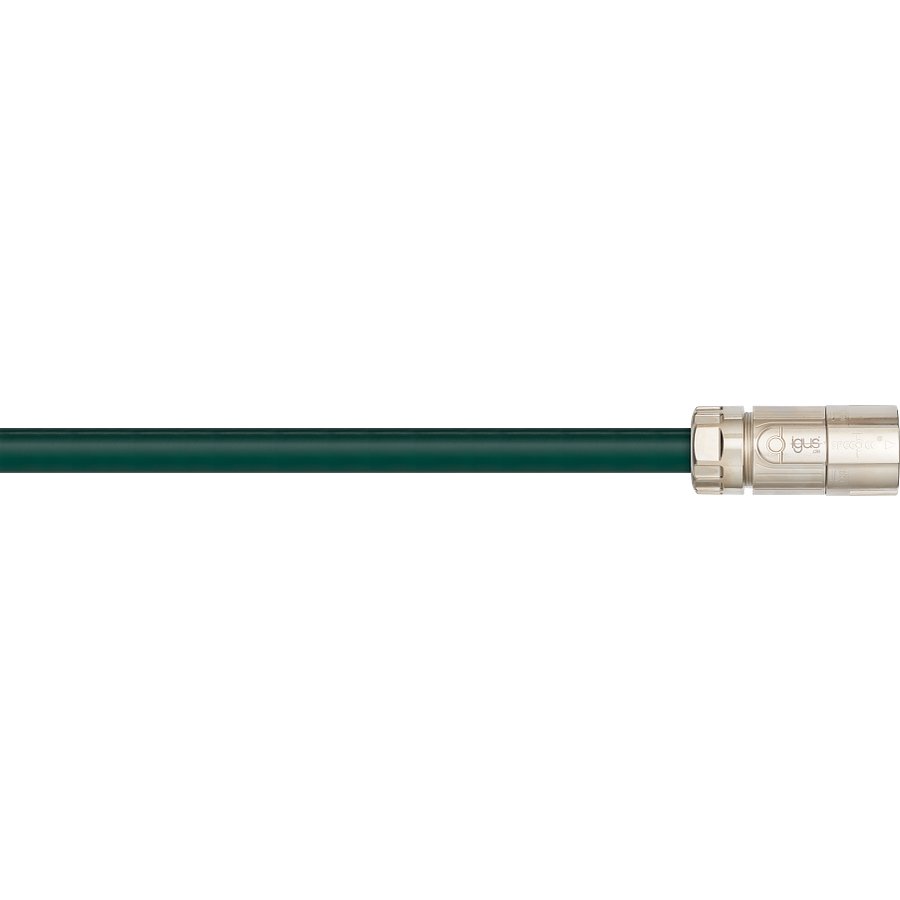

readycable® servo cable suitable for Baumüller 448118, 36A basic cable, PVC 7.5XD, Speedtec (MAT9295135)

igus readycable® servo cable suitable for Baumüller 448118, 36A basic cable, PVC 7.5XD, Speedtec (MAT9295135) is listed under Safety & Detection / Tools. Cable type: 36 A Basic cable SpeedTec; Connector A: Connector M40 socket 8-pin; Connector B: open cable end; Copper index kg/km: 412 kg/km; Core group 1 core structure: 4G6; Core group 2 core structure: 2x(2x1.5)C)C.

Manufacturer part number (MPN)

448118

Brand

IGUS

Category

Tools

Cable type

36 A Basic cable SpeedTec

Connector A

Connector M40 socket 8-pin

Connector B

open cable end

Number of cores and conductor nominal cross-section

(4G6.0+2x(2x1.5)C)C

Copper index kg/km

412 kg/km

Core group 1 core structure

4G6

Core group 2 core structure

2x(2x1.5)C)C

Shipping weight (kg or kg/m)

0.695

Outer diameter (d) max. mm

21 mm

Weight per km

695 kg/km

Min. bend radius, e-chain (factor)

7.5 x d

Min. bend radius, e-chain

157.5 mm

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

126 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

84 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

5 m/s

a max. (acceleration)

80 m/s²

travel length

Unsupported travel distances and up to 100 m for gliding applications

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacity XLPE mixture.

Core stranding

Power cores with control pair elements wound with elements for high-tensile stresses.

Inner jacket

PVC mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Element shield

Extremely bend-resistant braiding made of tinned copper wires.

Outer jacket

Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Moss green (comparable to RAL 6005)

CFRIP®

Strip cables faster: a tear strip is moulded into the inner jacket

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00863/20

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 30052 und 20886, 1000V, 90°C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
