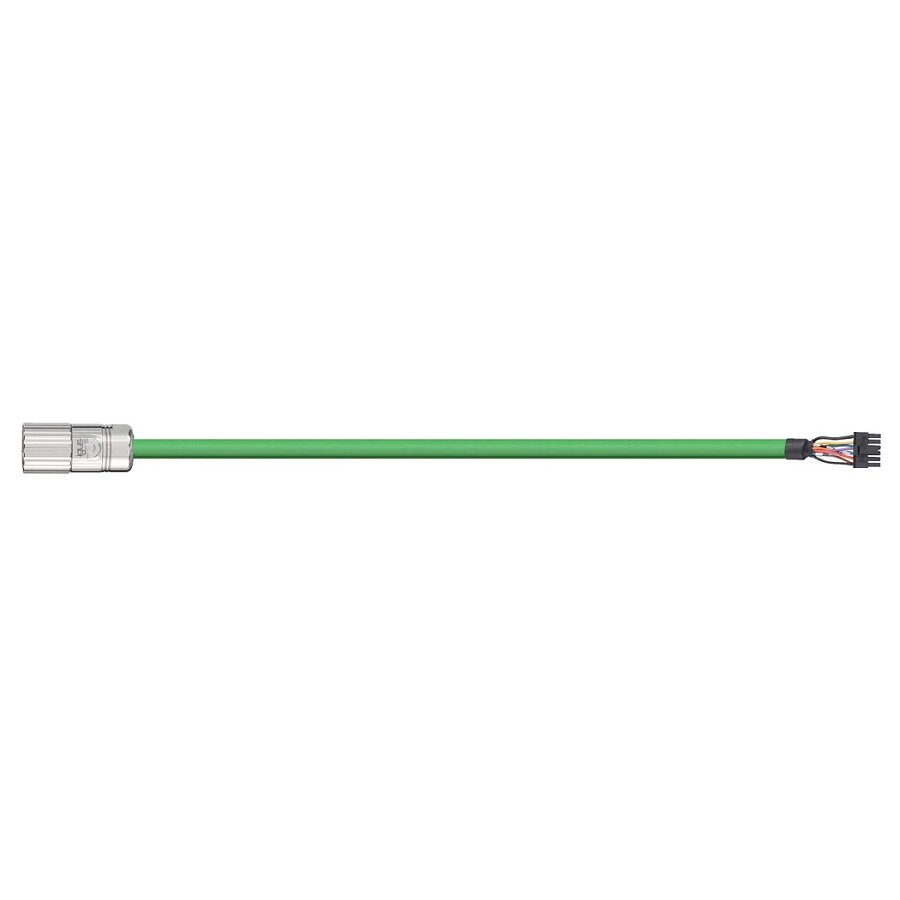

readycable® resolver cable suitable for Berger Lahr VW3M8101RXXX, base cable PVC 15 x d (MAT9440401)
Pricing
Request a quote
We reply within 24 hours
Product Description
readycable® resolver cable suitable for Berger Lahr VW3M8101R, base cable PVC 15 x d
Technical Specifications
- Manufacturer part number (MPN)
- VW3M8101RXXX
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- Connector M23 socket 12-pin
- Connector B
- Circuit board connection
- Number of cores and conductor nominal cross-section
- (4x(2x0.34)+4x0.5)C
- Copper index kg/km
- 64 kg/km
- Core group 1 core structure
- 4x(2x0.34)
- Core group 1 colour code
- black/brown, red/orange, yellow/green, blue/violet
- Core group 2 core structure
- 4x0.5
- Core group 2 colour code
- blue-white, black-white, red-white, yellow-white
- Shipping weight (kg or kg/m)
- 0.08457
- Outer diameter (d) max. mm
- 9.5 mm
- Weight per km
- 117 kg/km
- Min. bend radius, e-chain (factor)
- 15 x d
- Min. bend radius, e-chain
- 142.5 mm
- Min. bend radius, flexible (factor)
- 12 x d
- Min. bend radius, flexible
- 114 mm
- Min. bend radius, fixed (factor)
- 8 x d
- Min. bend radius, fixed
- 76 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228)
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- According to measuring system specification
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Element shield
- Foil taping of optimised, flexible foil shield. Cover approx. 100% optical
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- Nominal voltage
- 50V
- Test voltage
- 500V
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 1589 and 2560, 30 V, 60 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
