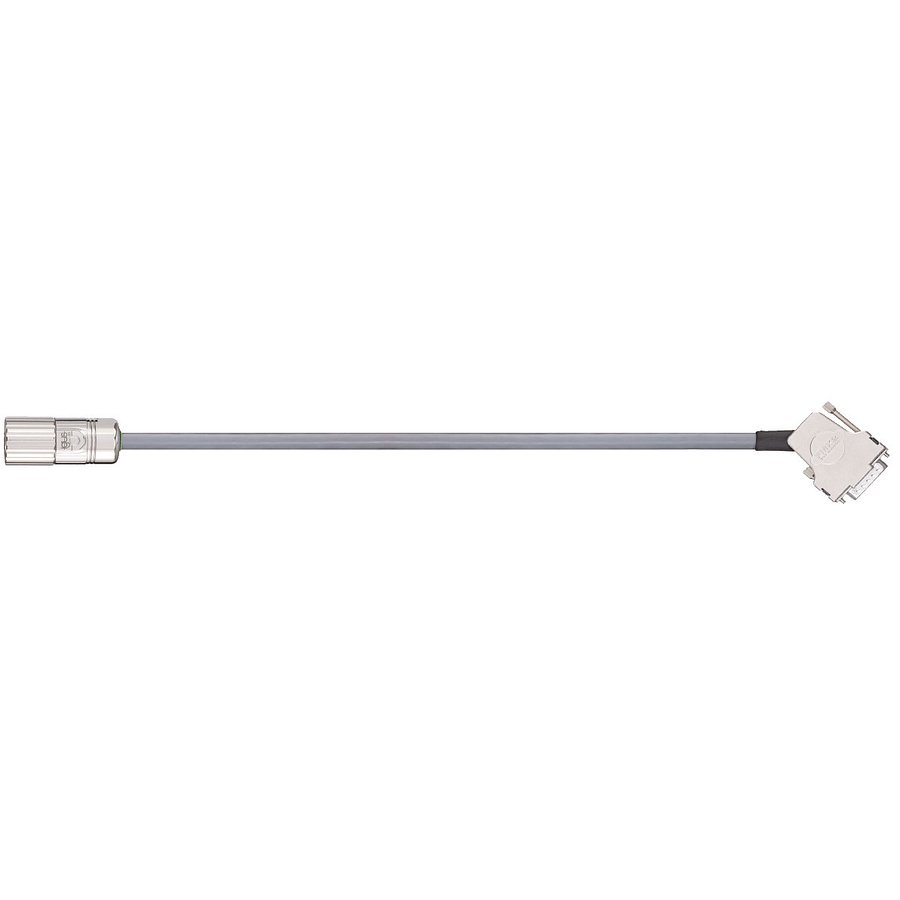

readycable® resolver cable suitable for Baumüller 239540 (5 m), base cable SRSSRM50 & SKSSKM36, PVC 10 x d (MAT9290003)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® resolver cable suitable for Baumüller 239540 (5 m), base cable SRSSRM50 & SKSSKM36, PVC 10 x d (MAT9290003) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: round plug, socket; Connector B: SUB-D, pin; Copper index kg/km: 45 kg/km; Core group 1 core structure: 5x(2x0.14); Core group 2 core structure: 2x0.5.
Technical Specifications
- Manufacturer part number (MPN)
- 239540 (5 M)
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- round plug, socket
- Connector B
- SUB-D, pin
- Number of cores and conductor nominal cross-section
- (5x(2x0.14)+2x0.5)C
- Copper index kg/km
- 45 kg/km
- Core group 1 core structure
- 5x(2x0.14)
- Core group 1 colour code
- brown/green, yellow/grey, white/violet, red/black, pink/blue
- Core group 2 core structure
- 2x0.5
- Core group 2 colour code
- white-green, white-red
- Shipping weight (kg or kg/m)
- 0.1542
- Outer diameter (d) max. mm
- 8 mm
- Weight per km
- 75 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 80 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 64 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 40 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 5 m/s
- v max. gliding (speed)
- 3 m/s
- a max. (acceleration)
- 30 m/s²
- travel length
- Travels up to 10 m
- torsion
- No Torsion
- Conductor
- Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires.
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- According to measuring system specification
- Liner
- Foil taping over the outer layer.
- Overall shield
- Extremely bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Element shield
- Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- Nominal voltage
- 50V
- Test voltage
- 500V
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10467 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
