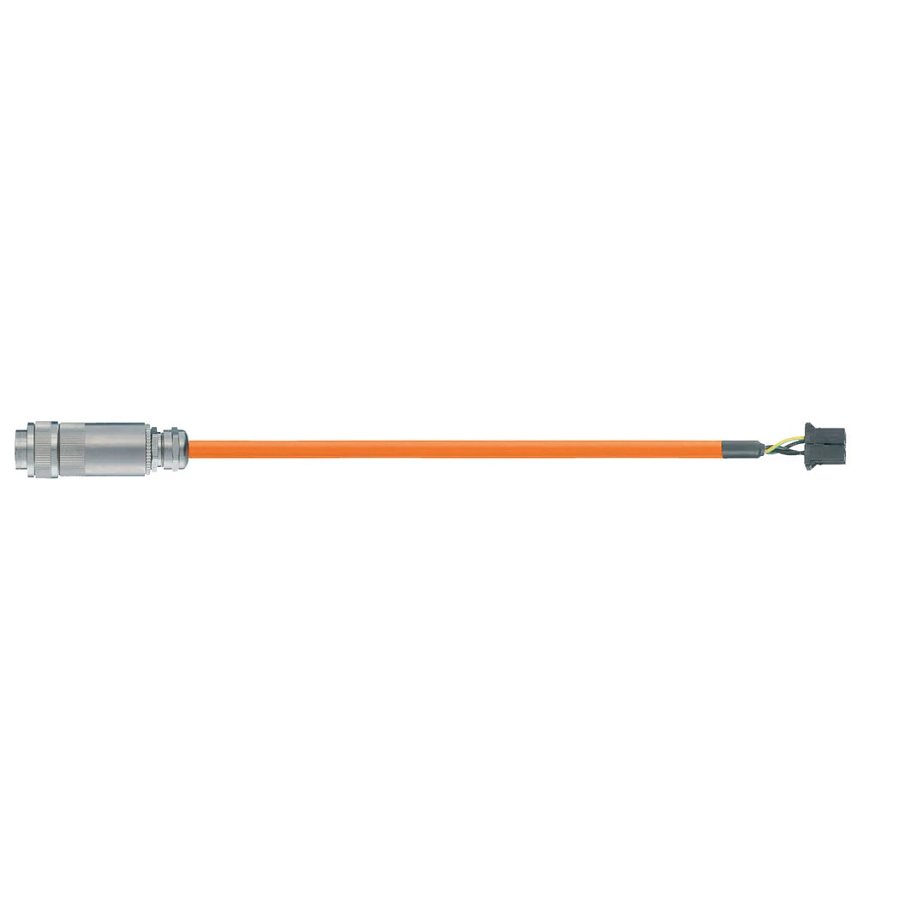

readycable® power cable suitable for Fanuc LX660-8077-T470, base cable iguPUR 15 x d (MAT9560925)

igus readycable® power cable suitable for Fanuc LX660-8077-T470, base cable iguPUR 15 x d (MAT9560925) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: val_242; Connector B: Round connector, socket, straight, 4-pin; Copper index kg/km: 204 kg/km; Shipping weight (kg or kg/m): 0.18195; Outer diameter (d) max. mm: 12 mm.

Manufacturer part number (MPN)

LX660-8077-T470

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

val_242

Connector B

Round connector, socket, straight, 4-pin

Number of cores and conductor nominal cross-section

(4G4.0)C

Copper index kg/km

204 kg/km

Shipping weight (kg or kg/m)

0.18195

Outer diameter (d) max. mm

12 mm

Weight per km

257 kg/km

Min. bend radius, e-chain (factor)

15 x d

Min. bend radius, e-chain

180 mm

Min. bend radius, flexible (factor)

12 x d

Min. bend radius, flexible

144 mm

Min. bend radius, fixed (factor)

8 x d

Min. bend radius, fixed

96 mm

Temperature e-chain®

-40°C up to +80°C

Temperature, flexible

-5°C up to +80°C

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

a max. (acceleration)

20 m/s²

travel length

Unsupported up to 10 m

torsion

No Torsion

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacitance TPE mixture.

Core stranding

Cores wound with an optimised pitch length.

Overall shield

Braiding made of tinned copper wires. Cover approx. 60% optical.

Outer jacket

Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Pastel orange (comparable to RAL 2003)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00302/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

CE

According to 2014/35/EU

UL/CSA AWM

Style 10492 and 20940, 1000 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
