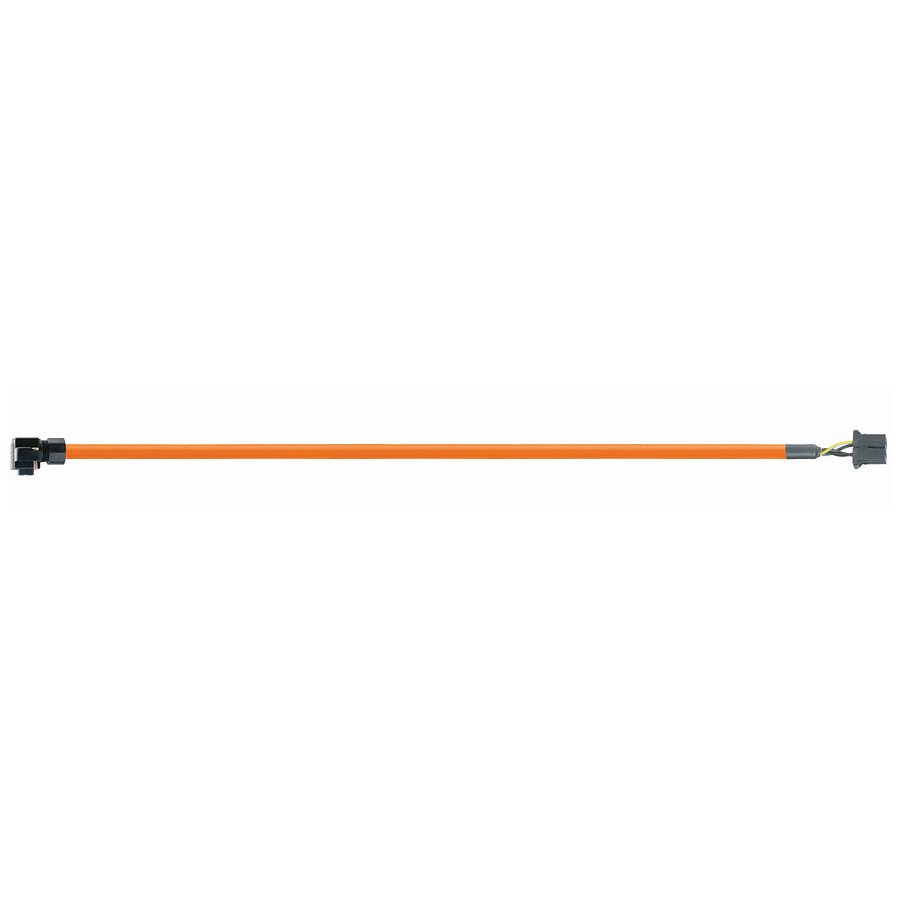

readycable® power cable suitable for Fanuc LX660-8077-T261, base cable PUR 10 x d (MAT9200061)

igus readycable® power cable suitable for Fanuc LX660-8077-T261, base cable PUR 10 x d (MAT9200061) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: val_242; Connector B: Molex connector 4-pin angled socket; Copper index kg/km: 78 kg/km; Shipping weight (kg or kg/m): 0.00808; Outer diameter (d) max. mm: 9 mm.

Manufacturer part number (MPN)

LX660-8077-T261

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

val_242

Connector B

Molex connector 4-pin angled socket

Number of cores and conductor nominal cross-section

(4G1.5)C

Copper index kg/km

78 kg/km

Shipping weight (kg or kg/m)

0.00808

Outer diameter (d) max. mm

9 mm

Weight per km

116 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

90 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

72 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

45 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

50 m/s²

travel length

Travels up to 10 m

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacity XLPE mixture.

Core stranding

Cores wound with high tensile strength centre elements.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Pastel orange (comparable to RAL 2003)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00863/20

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

CE

According to 2014/35/EU

UL/CSA AWM

Style 30052 und 21209, 1000 V, 90°C

UL verified

Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
