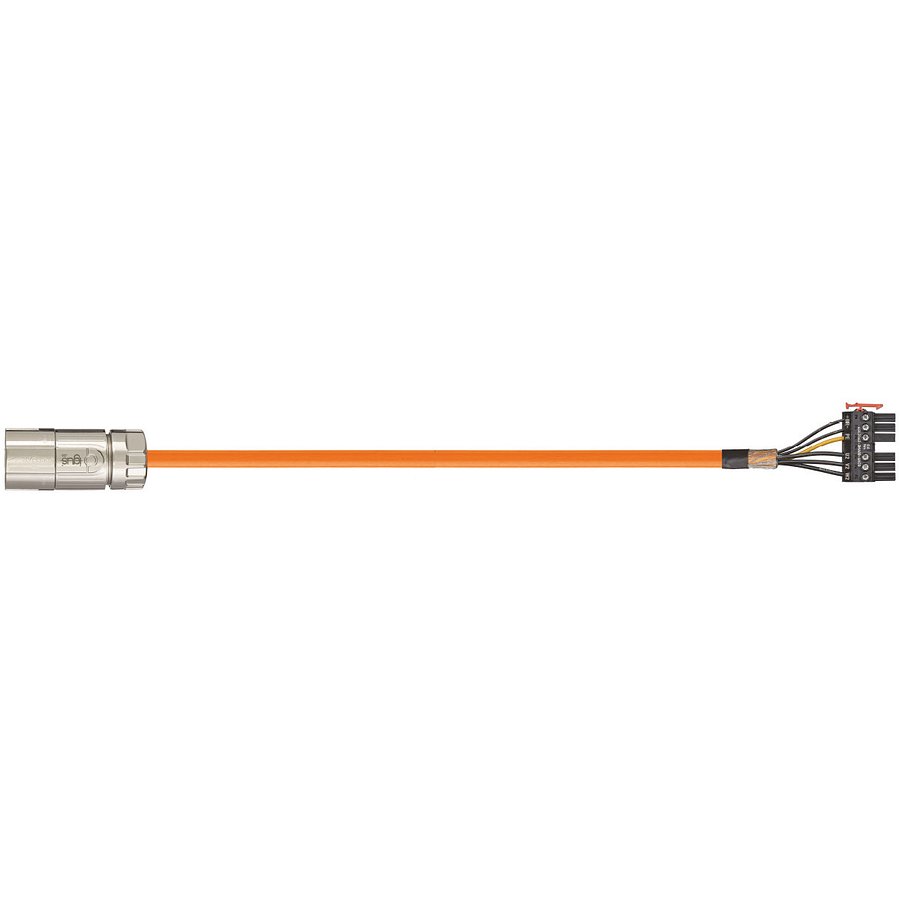

readycable® motor cable, suitable for Siemens, 6FX_002-5CN26, iguPUR 15 x d (MAT98615134)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® motor cable, suitable for Siemens, 6FX_002-5CN26, iguPUR 15 x d (MAT98615134) is listed under Safety & Detection / Tools. Connector A: M40 connector, socket, 6-pin; Connector B: Sinamics connector; Copper index kg/km: 82 kg/km; Shipping weight (kg or kg/m): 0.48206; Outer diameter (d) max. mm: 9 mm; Weight per km: 122 kg/km.
Technical Specifications
- Manufacturer part number (MPN)
- 6FX_002-5CN26
- Brand
- IGUS
- Category
- Tools
- Connector A
- M40 connector, socket, 6-pin
- Connector B
- Sinamics connector
- Number of cores and conductor nominal cross-section
- (4G1.5)C
- Copper index kg/km
- 82 kg/km
- Shipping weight (kg or kg/m)
- 0.48206
- Outer diameter (d) max. mm
- 9 mm
- Weight per km
- 122 kg/km
- Min. bend radius, e-chain (factor)
- 15 x d
- Min. bend radius, e-chain
- 135 mm
- Min. bend radius, flexible (factor)
- 12 x d
- Min. bend radius, flexible
- 108 mm
- Min. bend radius, fixed (factor)
- 8 x d
- Min. bend radius, fixed
- 72 mm
- Temperature e-chain®
- -40°C up to +80°C
- Temperature, flexible
- -5°C up to +80°C
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality, especially low-capacitance TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Outer jacket
- Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Pastel orange (comparable to RAL 2003)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00302/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10492 and 20940, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT98615134
Product Documentation
More from igus
igus
readycable® motor cable suitable for Allen Bradley 2090-CPWM7DF-02AF, basic cable PUR 10XD (MAT9861711)
igus
readycable® motor cable suitable for Allen Bradley 2090-CPWM7E7-16AF, extension cable PUR 10XD (MAT9861712)
igus
readycable® motor cable suitable for Allen Bradley 2090-CPWM7E7-14AF, extension cable PUR 10XD (MAT9861713)
igus
readycable® motor cable suitable for Allen Bradley 2090-CPWM7E7-12AF, extension cable PUR 10XD (MAT9861714)
igus
readycable® motor cable suitable for Allen Bradley 2090-CPWM7E7-10AF, extension cable PUR 10XD (MAT9861715)
igus
readycable® motor cable suitable for Allen Bradley 2090-CPWM7E7-08AF, extension cable PUR 10XD (MAT9861716)
igus
readycable® adapter cable in accordance with Allen Bradley 2090-CPWM4E2-14TR, basic cable PUR 10 x d (MAT9861792)
igus
readycable® hybrid cable, suitable for SEW, I2812 3743, basic cable, PUR 10XD (MAT9881401)
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6FX_002-5CN26?
- 6FX_002-5CN26 can be ordered from cballast.com as a igus catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this igus product?
- The manufacturer part number is 6FX_002-5CN26.
- What is the HS code for 6FX_002-5CN26?
- The customs tariff (HS) code for 6FX_002-5CN26 is 8544.42.
- Who manufactures 6FX_002-5CN26?
- 6FX_002-5CN26 is a igus product in the Safety & Detection range.
- Is a datasheet available for 6FX_002-5CN26?
- Yes — the 6FX_002-5CN26 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6FX_002-5CN26?
- The minimum order quantity is 1.
- Is 6FX_002-5CN26 available?
- Yes — 6FX_002-5CN26 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
