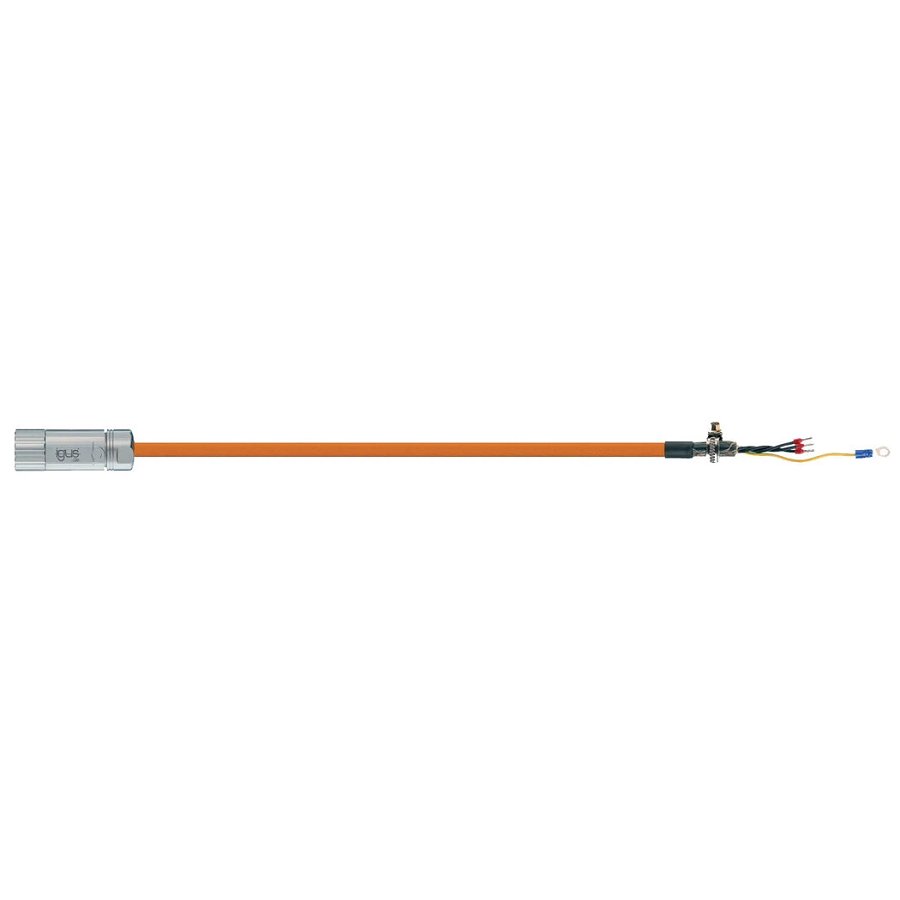

readycable® motor cable suitable for Control Techniques PS B E B B XXX, base cable PVC 15 x d (MAT9460524)
Pricing
Request a quote
We reply within 24 hours
Product Description
readycable® motor cable suitable for Control Techniques PS B E B B, base cable PVC 15 x d
Technical Specifications
- Manufacturer part number (MPN)
- PS B E B B XXX
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- M40 connector, socket, 6-pin
- Connector B
- Ring cable lug
- Number of cores and conductor nominal cross-section
- (4G16)C
- Copper index kg/km
- 760 kg/km
- Shipping weight (kg or kg/m)
- 0.393915
- Outer diameter (d) max. mm
- 21 mm
- Weight per km
- 829 kg/km
- Min. bend radius, e-chain (factor)
- 15 x d
- Min. bend radius, e-chain
- 315 mm
- Min. bend radius, flexible (factor)
- 12 x d
- Min. bend radius, flexible
- 252 mm
- Min. bend radius, fixed (factor)
- 8 x d
- Min. bend radius, fixed
- 168 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality, especially low-capacitance TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Pastel orange (comparable to RAL 2003)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00302/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10492 and 2570, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT9460524
Product Documentation
