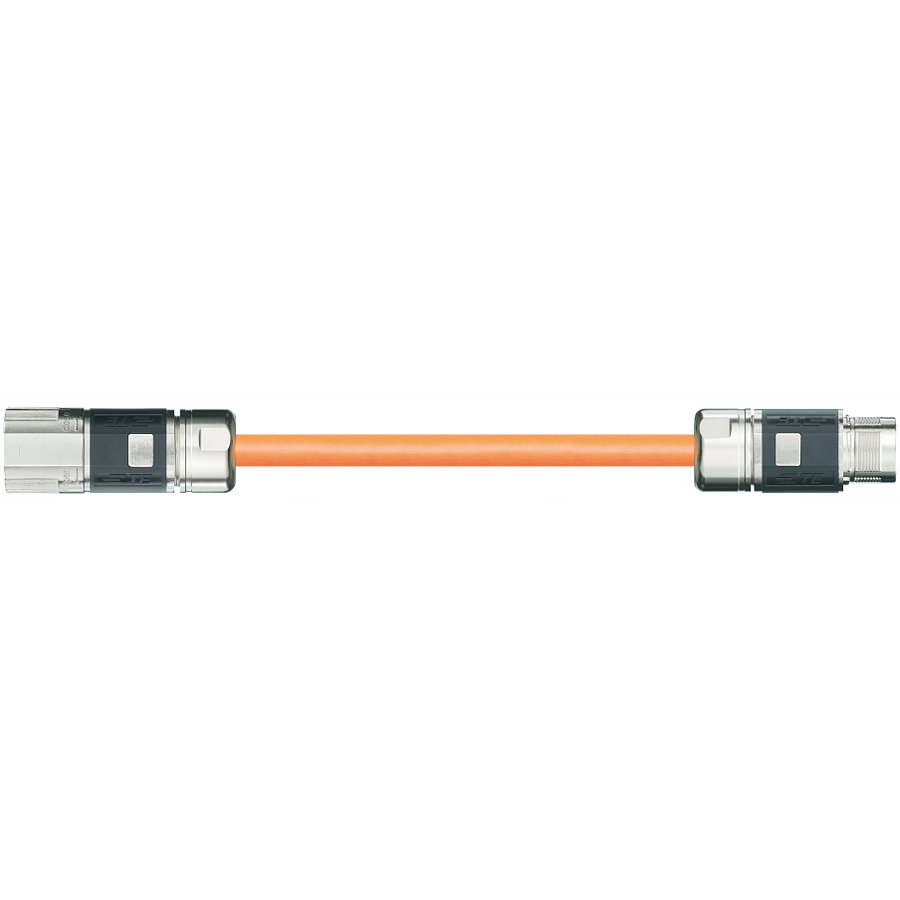

readycable® hybrid servo cable, suitable for Siemens 6FX_002-8QE11 extension cable, PUR 10XD (MAT98515155)

igus readycable® hybrid servo cable, suitable for Siemens 6FX_002-8QE11 extension cable, PUR 10XD (MAT98515155) is listed under Safety & Detection / Tools. Cable type: Extension cable; Connector A: M23 connector, socket, 10-pin; Connector B: M23 coupling, pin, 10-pin; Copper index kg/km: 159 kg/km; Core group 1 core structure: 4G1.5; Core group 2 core structure: (2x1.5)C.

Manufacturer part number (MPN)

6FX_002-8QE11

Brand

IGUS

Category

Tools

Cable type

Extension cable

Connector A

M23 connector, socket, 10-pin

Connector B

M23 coupling, pin, 10-pin

Number of cores and conductor nominal cross-section

(4G1.5+(2x1.5)C+(4xAWG26)C)C

Copper index kg/km

159 kg/km

Core group 1 core structure

4G1.5

Core group 2 core structure

(2x1.5)C

Core group 3 core structure

(4xAWG26)C

Core group 3 colour code

one core each in yellow, blue, green and orange

Shipping weight (kg or kg/m)

0.200648

Outer diameter (d) max. mm

13 mm

Weight per km

236 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

130 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

104 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

65 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

50 m/s²

travel length

Travels up to 10 m

torsion

No Torsion

Conductor

Stranded conductor in a bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacity XLPE mixture.

Core stranding

Power cores and control pair elements wound with a short pitch length around a high tensile strength centre element.

Liner

Foil taping over the outer layer.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Element shield

Flexible braiding made of tinned copper wires.

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Pastel orange (comparable to RAL 2003)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00863/20

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10867 and 20233, 1000 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

DESINA

According to VDW, DESINA standardisation

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
