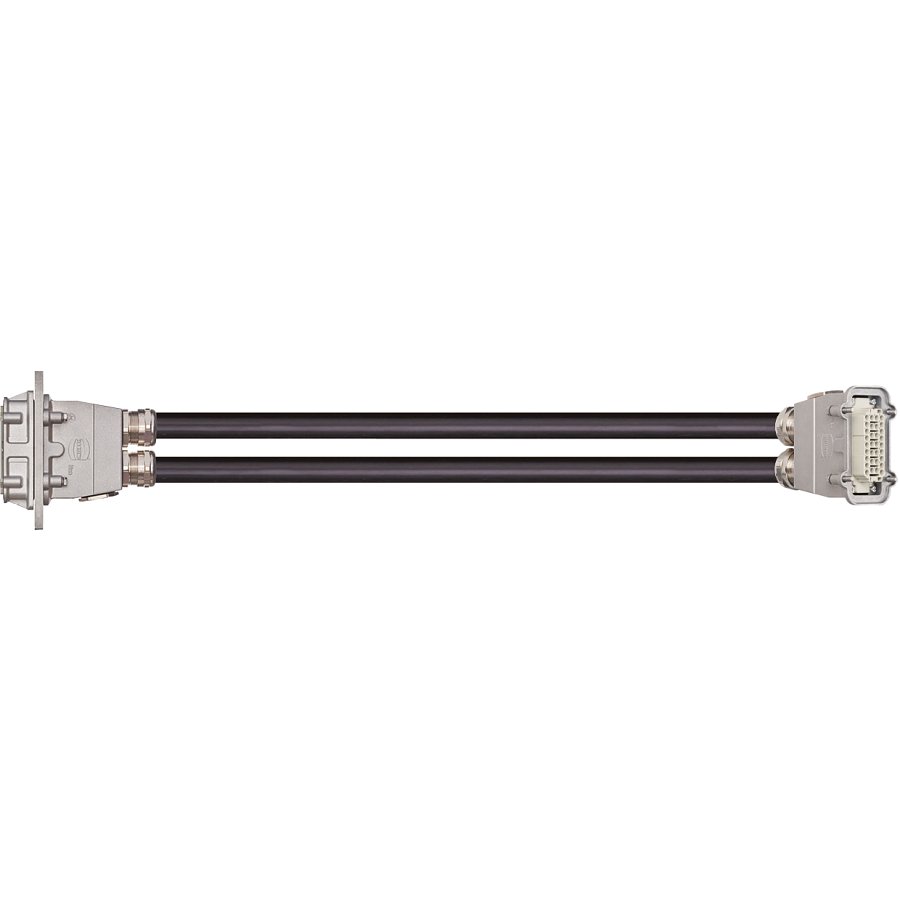

readycable® harnessed hybrid cable, direct connection cable for ABB robot, PUR (MAT904145759)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® harnessed hybrid cable, direct connection cable for ABB robot, PUR (MAT904145759) is listed under Safety & Detection / Tools. Copper index kg/km: 545 kg/km; Shipping weight (kg or kg/m): 0.882; Outer diameter (d) max. mm: 25.5 mm; Weight per km: 882 kg/km; Min. bend radius, e-chain: 255 mm; Min. bend radius, flexible: 204 mm.
Technical Specifications
- Manufacturer part number (MPN)
- MAT904145759
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (18G2.5)C
- Copper index kg/km
- 545 kg/km
- Core group 1 colour code
- Black cores with white numbers 1-17, one green-yellow core
- Shipping weight (kg or kg/m)
- 0.882
- Outer diameter (d) max. mm
- 25.5 mm
- Weight per km
- 882 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 255 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 204 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 127.5 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 20 m/s²
- torsion
- No Torsion
- Conductor
- Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 50% linear, approx. 80% optical
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00302/19
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. B129699: "igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
Standards & Compliance
- HS Code
- 6307.90
Cross References
- OEM-URL https://www.igus.com/product/MAT904145759
Product Documentation
More from igus
igus
readycable® harnessed hybrid cable, direct connection cable for ABB robot, PUR (MAT904145760)
igus
readycable® bus cable according to AIDA Profinet RJ-45, extension cable 7TH axis, female/female
MAT904151684
igus
readycable® motor cable Kuka Titan angled on socket (MAT90415014)
igus
readycable® control cable according to AIDA Power, extension cable 7TH axis, male/male (MAT904151685)
igus
readycable® data cable nach AIDA Signal, extension cable 7TH axis
MAT904151686
igus
readycable® control cable according to AIDA Power, extension cable 7TH axis, male/male (MAT904151688)
igus
readycable® bus cable according to AIDA Profinet RJ-45, extension cable axis 1-6, male/male (MAT904151687)
igus

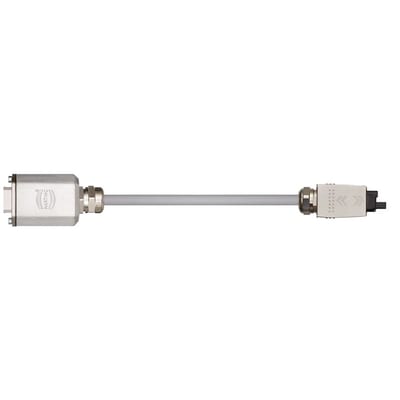

readycable® control cable according to AIDA Power, extension cable 7TH axis, male/male (MAT904152119)
