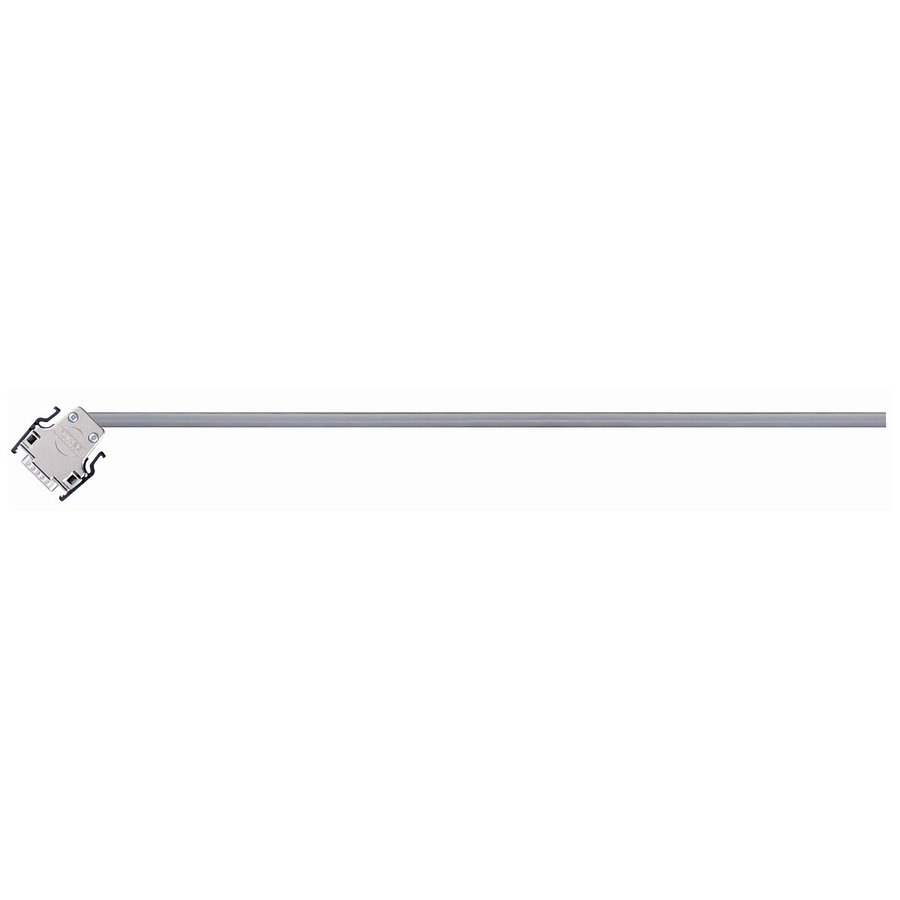

readycable® feedback cable suitable for Lenze EYF0018AXXXXA00S03, base cable TPE 7.5 x d (MAT9120095)

readycable® feedback cable suitable for Lenze EYF0018AxA00S03, base cable TPE 7.5 x d

Manufacturer part number (MPN)

EYF0018AXXXXA00S03

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

SUB-D, pin

Connector B

open cable end, cut off

Number of cores and conductor nominal cross-section

4x(2x0.14)C+2x(1.0)C

Copper index kg/km

64 kg/km

Core group 1 core structure

4x(2x0.14)C

Core group 1 colour code

yellow/black, red/black, blue/black, green/black

Core group 2 core structure

2x(1.0)C

Core group 2 colour code

white, brown

Shipping weight (kg or kg/m)

0.0677

Outer diameter (d) max. mm

9.5 mm

Weight per km

104 kg/km

Min. bend radius, e-chain (factor)

6.8 x d

Min. bend radius, e-chain

64.6 mm

Min. bend radius, flexible (factor)

5 x d

Min. bend radius, flexible

47.5 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

38 mm

Temperature e-chain®

-35°C up to +90°C

Temperature, flexible

-50°C to +90°C (according to DIN EN 60811-504)

Temperature, fixed

-55°C to +90°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

6 m/s

a max. (acceleration)

100 m/s²

travel length

Travels up to 400 m and more

torsion

No Torsion

Conductor

Stranded conductor in an especially flexible design consisting of tinned copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Yellow-green (comparable to RAL 6018)

CFRIP®

Strip cables faster: a tear strip is moulded into the inner jacket

Nominal voltage

50V

Test voltage

1500V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL AWM

Style 10467 and 22355, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

DESINA

According to VDW, DESINA standardisation

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
