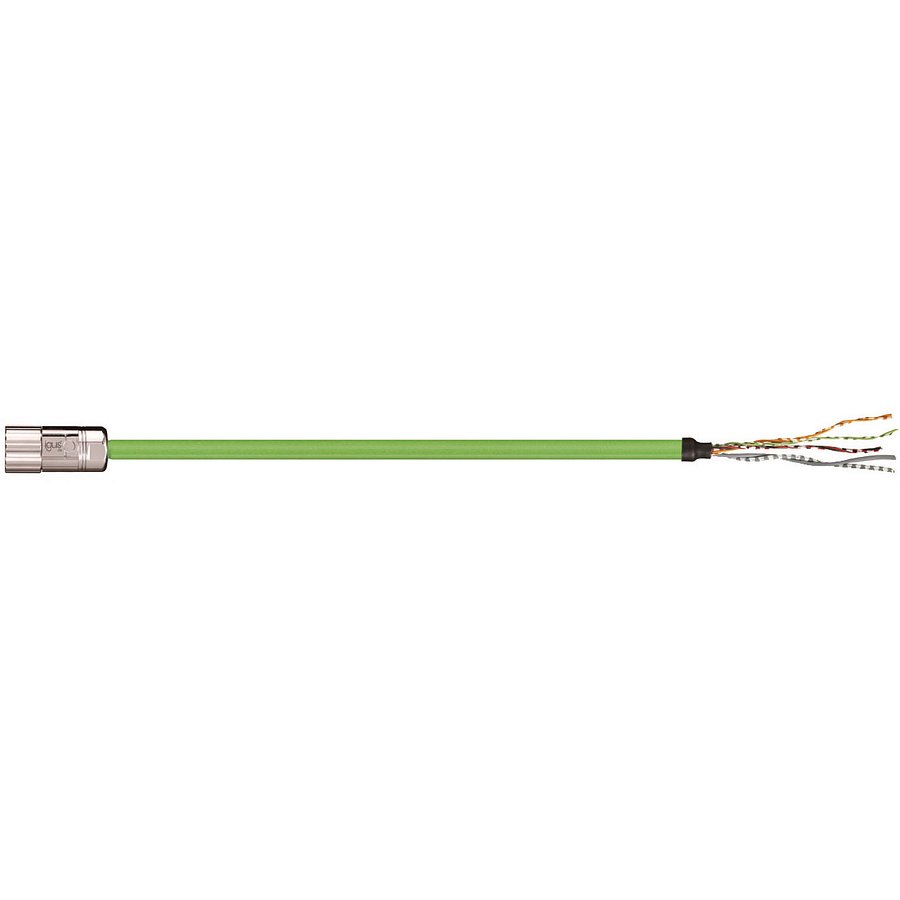

readycable® feedback cable similar to Allen Bradley I2090-CFBM4DF-CDAFXX, base cable PUR 10 x d (MAT9841775)

readycable® feedback cable similar to Allen Bradley i2090-CFBM4DF-CDAF, base cable PUR 10 x d

Manufacturer part number (MPN)

I2090-CFBM4DF-CDAFXX

Brand

IGUS

Category

Tools

Connector A

round plug, socket

Connector B

open cable end

Number of cores and conductor nominal cross-section

(3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C

Copper index kg/km

81 kg/km

Core group 1 core structure

3x(4x0.14)

Core group 1 colour code

black/red/white-black/white-red, green/blue/white-green/white-blue, yellow/brown/white-yellow/white-brown

Core group 2 core structure

(2x0.14+2x0.34)

Core group 2 colour code

violet/orange/white-violet/white-orange

Core group 3 core structure

2x1.5

Core group 3 colour code

white-grey, grey

Shipping weight (kg or kg/m)

0.0845

Outer diameter (d) max. mm

9 mm

Weight per km

118 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

90 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

72 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

45 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

5 m/s

v max. gliding (speed)

3 m/s

a max. (acceleration)

30 m/s²

travel length

Travels up to 10 m

torsion

No Torsion

Conductor

Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires.

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Liner

Foil taping over the outer layer.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Element shield

Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

Nominal voltage

50V

Test voltage

500V

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10467 and 20233, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

DESINA

According to VDW, DESINA standardisation

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

DNV

Type approval certificate TAE00003X4

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42

• OEM-URL https://www.igus.com/product/MAT9841775
