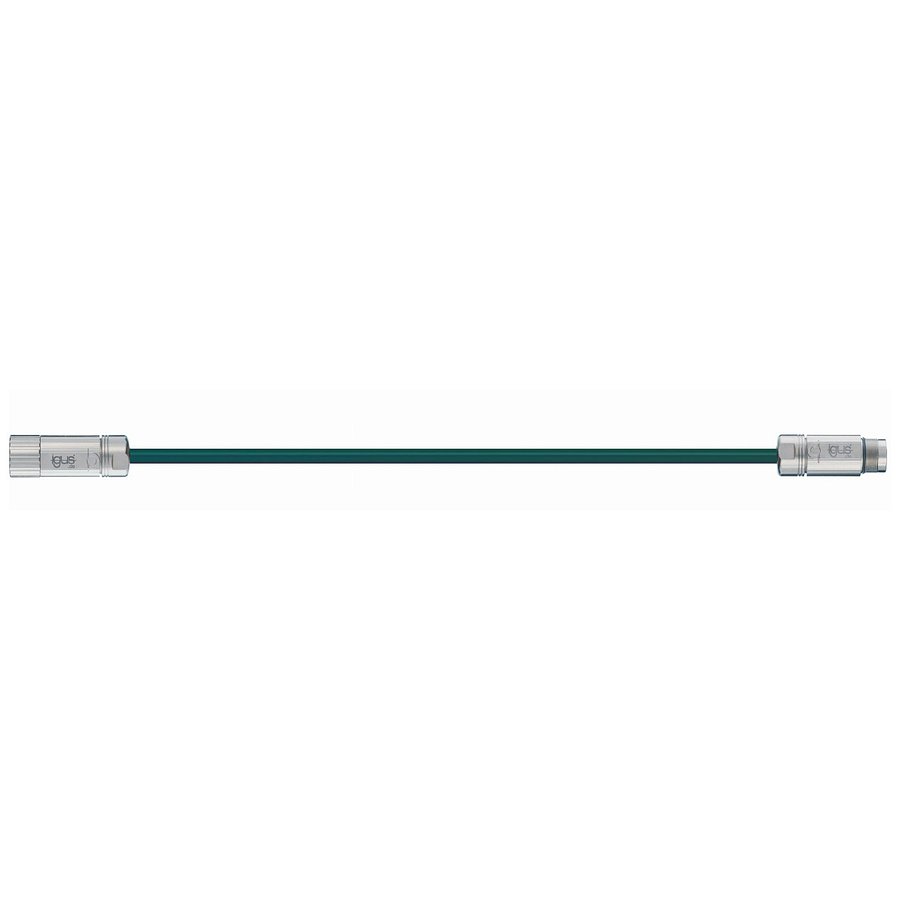

readycable® fan cable suitable for Lenze EWLLxxxZM, link cable TPE 5 x d (MAT9120032)
Pricing
Request a quote
We reply within 24 hours
Product Description
readycable® fan cable suitable for Lenze EWLLZM, link cable TPE 5 x d
Technical Specifications
- Manufacturer part number (MPN)
- EWLLXXXZM
- Brand
- IGUS
- Category
- Tools
- Cable type
- Connecting cable
- Connector A
- round plug, socket
- Connector B
- coupling, pin
- Number of cores and conductor nominal cross-section
- 3G1
- Copper index kg/km
- 30 kg/km
- Shipping weight (kg or kg/m)
- 0.218676
- Outer diameter (d) max. mm
- 6 mm
- Weight per km
- 54 kg/km
- Min. bend radius, e-chain (factor)
- 5 x d
- Min. bend radius, e-chain
- 30 mm
- Min. bend radius, flexible (factor)
- 4 x d
- Min. bend radius, flexible
- 24 mm
- Min. bend radius, fixed (factor)
- 3 x d
- Min. bend radius, fixed
- 18 mm
- Temperature e-chain®
- -35°C up to +100°C
- Temperature, flexible
- -50°C to +100°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +100°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- Travels up to 400 m and more
- v max., twisted (speed)
- 90 °/m
- torsion
- Torsion ±90°, with 1m cable length, Class 2
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in a layer with short pitch length.
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- CFRIP®
- Strip cables faster: a tear strip is moulded into the outer jacket
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1, material/cable tested by IPA according to DIN EN ISO standard 14644-1
- CE
- According to 2014/35/EU
- UL AWM
- Style 11886 and 22351, 1000 V, 90 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT9120032
Product Documentation
