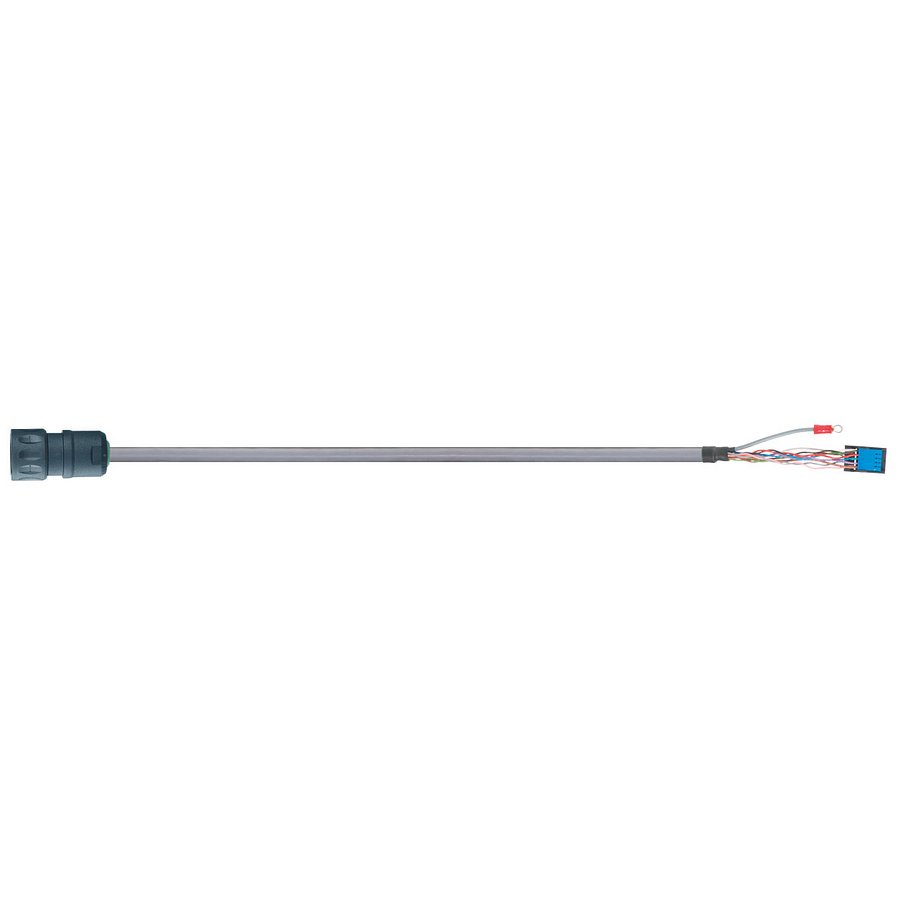

readycable® encoder cable suitable for Bosch Rexroth IKS0253, base cable TPE 5XD (MAT9100023)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® encoder cable suitable for Bosch Rexroth IKS0253, base cable TPE 5XD (MAT9100023) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: Connector M23 socket 12-pin; Connector B: val_255; Copper index kg/km: 107 kg/km; Shipping weight (kg or kg/m): 0.084131; Outer diameter (d) max. mm: 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- IKS0253
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- Connector M23 socket 12-pin
- Connector B
- val_255
- Number of cores and conductor nominal cross-section
- (12x0.5)C
- Copper index kg/km
- 107 kg/km
- Shipping weight (kg or kg/m)
- 0.084131
- Outer diameter (d) max. mm
- 12 mm
- Weight per km
- 198 kg/km
- Min. bend radius, e-chain (factor)
- 5 x d
- Min. bend radius, e-chain
- 60 mm
- Min. bend radius, flexible (factor)
- 4 x d
- Min. bend radius, flexible
- 48 mm
- Min. bend radius, fixed (factor)
- 3 x d
- Min. bend radius, fixed
- 36 mm
- Temperature e-chain®
- -35°C up to +100°C
- Temperature, flexible
- -50°C to +100°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +100°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- Travels up to 400 m and more
- torsion
- No Torsion
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in bundles are then wound around a high tensile strength centre element, all with optimised short pitch lengths and directions. Especially low-torsion structure.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- CFRIP®
- Strip cables faster: a tear strip is moulded into the inner jacket
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11886 and 22351, 1000 V, 90 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
