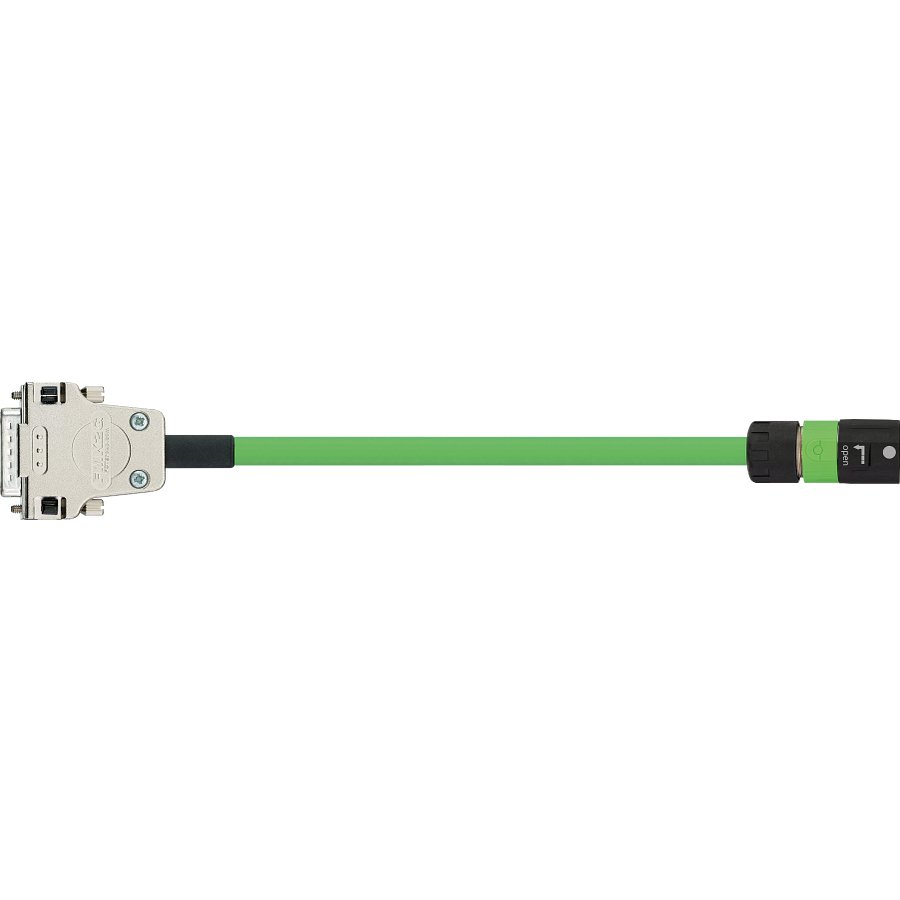

readycable® data cable suitable for KEBA KE11-H-I17-KSXXX, basic cable PVC 7.5XD (MAT9743501)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® data cable suitable for KEBA KE11-H-I17-KSXXX, basic cable PVC 7.5XD (MAT9743501) is listed under Safety & Detection / Tools. Copper index kg/km: 44 kg/km; Stranding type: Twisted Pair; Shipping weight (kg or kg/m): 0.076; Outer diameter (d) max. mm: 7.5 mm; Weight per km: 76 kg/km; Min. bend radius, e-chain: 56.25 mm.
Technical Specifications
- Manufacturer part number (MPN)
- KE11-H-I17-KSXXX
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (4x(2x0.25))C
- Copper index kg/km
- 44 kg/km
- Stranding type
- Twisted Pair
- Shipping weight (kg or kg/m)
- 0.076
- Outer diameter (d) max. mm
- 7.5 mm
- Weight per km
- 76 kg/km
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 56.25 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 45 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 30 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 5 m/s
- v max. gliding (speed)
- 3 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- torsion
- No Torsion
- Conductor
- Very finely stranded special conductors of a particularly bend-resistant design, made of bare copper wires.
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores twisted in pairs with short pitch lengths, core pairs then wound with short pitch lengths.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Silver grey (comparable to RAL 7001)
- Nominal voltage
- 300/300V (according to DIN VDE 0298-3)
- Test voltage
- 1500V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF240.02.24 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
