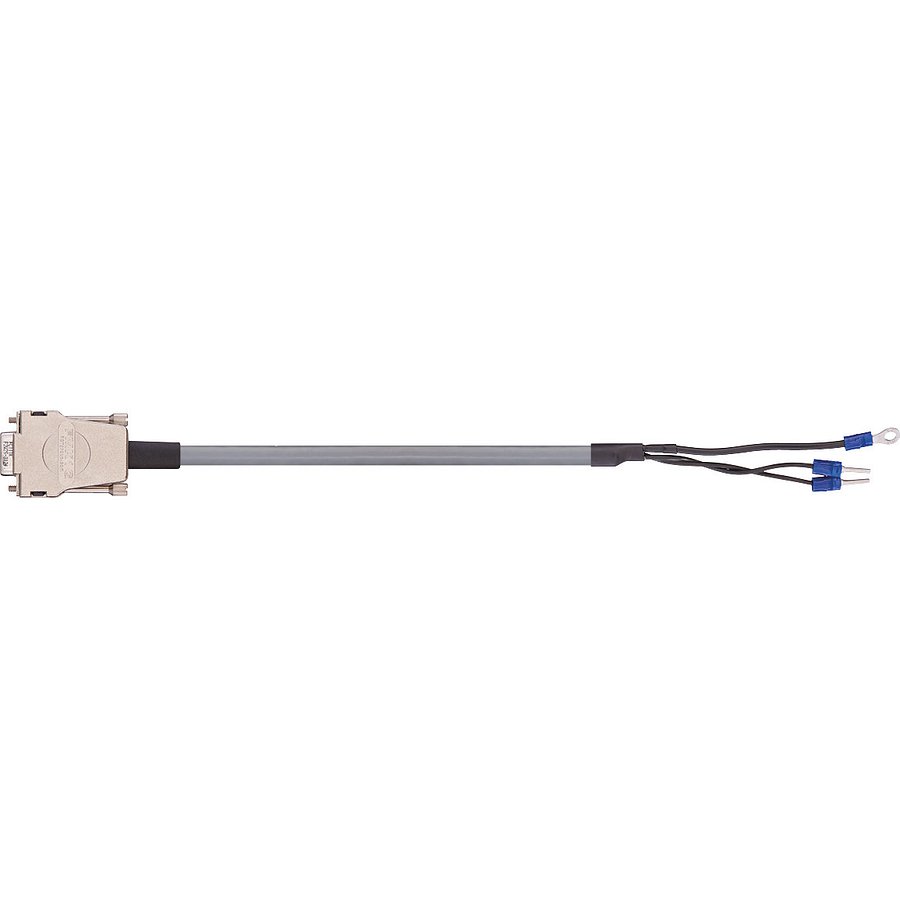

readycable® control cable suitable for Festo KPWR-MC-1-SUB-9HC-, base cable PVC 7.5 x d (MAT9712320)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® control cable suitable for Festo KPWR-MC-1-SUB-9HC-, base cable PVC 7.5 x d (MAT9712320) (part number KPWR-MC-1-SUB-9HC-XXX) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: val_255; Connector B: Wire end sleeve/ring cable lug; Copper index kg/km: 68 kg/km; Shipping weight (kg or kg/m): 0.0572256; Outer diameter (d) max. mm: 9 mm.
Technical Specifications
- Manufacturer part number (MPN)
- KPWR-MC-1-SUB-9HC-XXX
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- val_255
- Connector B
- Wire end sleeve/ring cable lug
- Number of cores and conductor nominal cross-section
- (3G1.5)C
- Copper index kg/km
- 68 kg/km
- Shipping weight (kg or kg/m)
- 0.0572256
- Outer diameter (d) max. mm
- 9 mm
- Weight per km
- 126 kg/km
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 67.5 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 54 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 36 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Travels up to 50 m
- torsion
- No Torsion
- Conductor
- Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in a layer with short pitch length.
- Inner jacket
- PVC mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Silver grey (comparable to RAL 7001)
- CFRIP®
- Strip cables faster: a tear strip is moulded into the inner jacket
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF130.15.07.UL - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 20200, 300 V, 60 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT9712320
Product Documentation
More from igus
igus
readycable® control cable, suitable for Panasonic, MFMCA0XX0EEL, base cable PVC 7.5 x d (MAT9712602)
igus

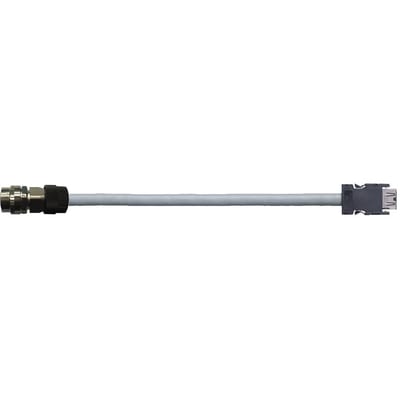

readycable® encoder cable suitable for Mitsubishi Electric MR-J3ENSCBL--H, base cable, PVC 7.5 x d (MAT9722001)
MR-J3ENSCBL-XXX-H
igus

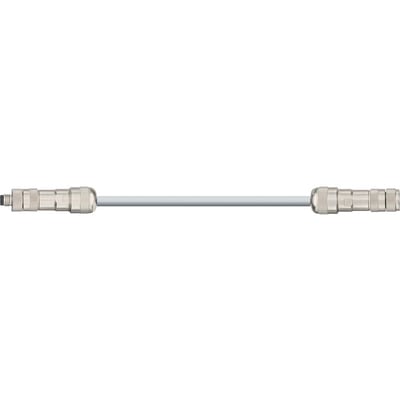

readycable® data cable suitable for Schunk KV BG08-SG08 3P, extension cable, PVC 10XD (MAT9713801)
igus

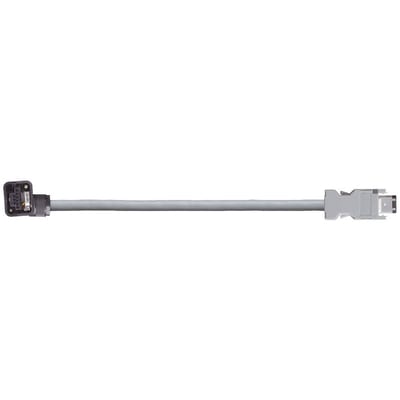

readycable® encoder cable suitable for Mitsubishi Electric MR-J3ENCBL--A2-H, base cable, PVC 7.5 x d (MAT9722003)
MR-J3ENCBL-XXX-A2-H
igus
readycable® resolver cable suitable for Parker IREK42, base cable PVC 7.5 x d (MAT9722209)
igus

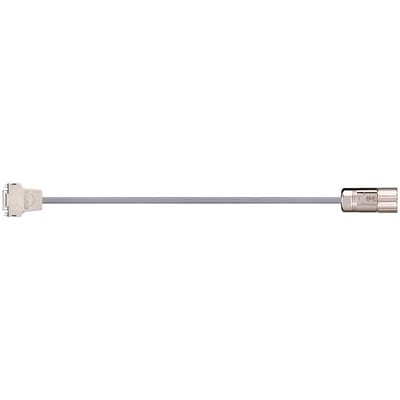

readycable® resolver cable suitable for Parker IREK41, base cable PVC 7.5 x d (MAT9722210)
