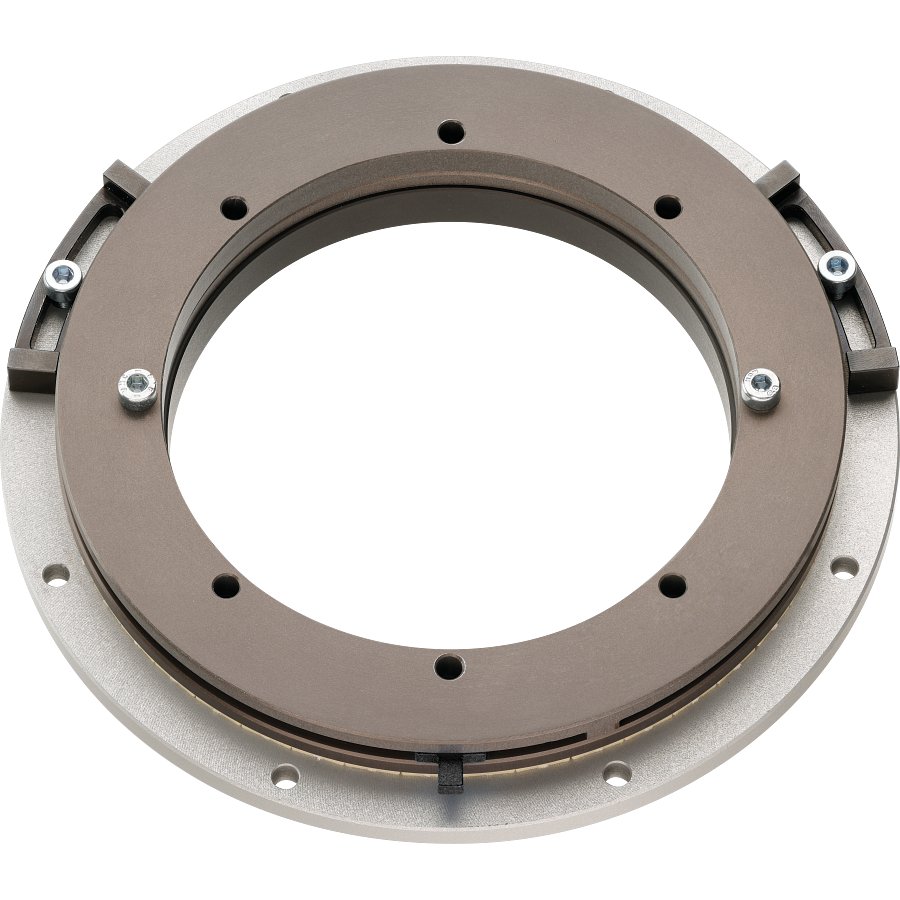

iglide® Slewing Ring PRT-04 with Angle Limiter Over 360°, Aluminum Outer Ring, iglide® J Sliding Element
Pricing
Request a quote
We reply within 24 hours
Overview
igus iglide® Slewing Ring PRT-04 with Angle Limiter Over 360°, Aluminum Outer Ring, iglide® J Sliding Element (part number PRT-04-20-TS-360) is listed under Safety & Detection / Tools. Weight: 178.403 g; Shipping weight (kg or kg/m): 0.178403; Outer diameter (d) max. mm: 20 mm; D1: 70 mm; Ø d2: 60 mm; S1: M4.
Technical Specifications
- Manufacturer part number (MPN)
- PRT-04-20-TS-360
- Brand
- IGUS
- Category
- Tools
- Weight
- 178.403 g
- Shipping weight (kg or kg/m)
- 0.178403
- Outer diameter (d) max. mm
- 20 mm
- D1
- 70 mm
- Ø d2
- 60 mm
- S1
- M4
- S2
- 4.5
- h1
- 12.3 mm
- h2
- 8 mm
- Max. long-term application temperature
- 90 °C
- Lower application temperature
- -50 °C
- Axial load, static
- 5000 N
- Axial load, dynamic
- 1500 N
- Rotating speed dry running [rpm]
- 300
- max. permissible tilt moment
- 30 Nm
Standards & Compliance
- HS Code
- 8483.30
Cross References
- OEM-URL https://www.igus.com/product/iglidur_PRT_04_TS_360
Product Documentation
