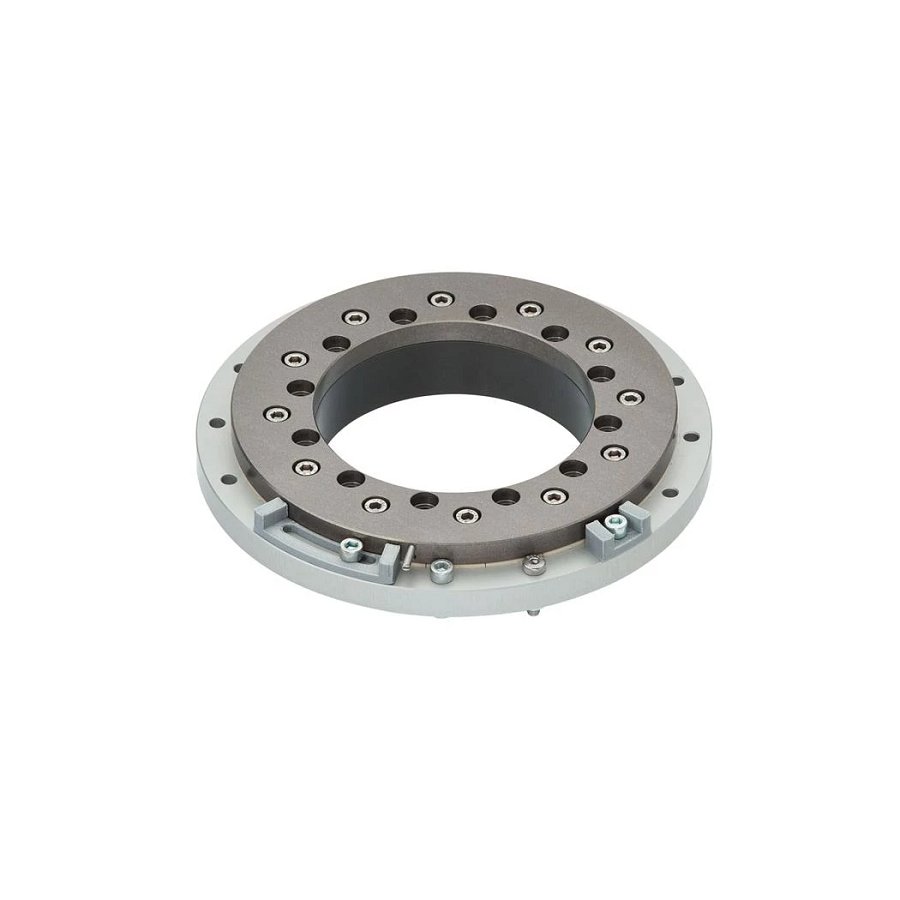

iglide® PRT-01 Slewing Ring with Angle Stop - Aluminium housing, iglide® J Sliding Elements
Pricing
Request a quote
We reply within 24 hours
Overview
igus iglide® PRT-01 Slewing Ring with Angle Stop - Aluminium housing, iglide® J Sliding Elements (part number PRT-01-20-AA) is listed under Safety & Detection / Tools. Weight: 202.168 g; Housing material: aluminium; Shipping weight (kg or kg/m): 0.202168; Outer diameter (d) max. mm: 70 mm; D tolerance: according to DIN ISO 2768 mK; Ø d2: 60 mm.
Technical Specifications
- Manufacturer part number (MPN)
- PRT-01-20-AA
- Brand
- IGUS
- Category
- Tools
- Weight
- 202.168 g
- Housing material
- aluminium
- Shipping weight (kg or kg/m)
- 0.202168
- Outer diameter (d) max. mm
- 70 mm
- D tolerance
- according to DIN ISO 2768 mK
- Ø d2
- 60 mm
- d2 tolerance
- ±0,20 mm
- T1
- 6 x 60 °
- S1
- M4
- S2
- 4,5
- K1
- DIN 7984 M4
- R1
- 30 mm
- R2
- 20 mm
- h2
- 6.5 mm
- Max. long-term application temperature
- 90 °C
- Lower application temperature
- -50 °C
- Axial load, static
- 15000 N
- Axial load, dynamic
- 4000 N
- Radial load, static
- 2300 N
- Radial load, dynamic
- 600 N
- Rotating speed dry running [rpm]
- 300
- max. permissible tilt moment
- 100 Nm
Standards & Compliance
- HS Code
- 8483.30
Cross References
- OEM-URL https://www.igus.com/product/iglidur_PRT_01_AA
Product Documentation
More from igus
igus
iglide® PRT-01 Slewing Ring - Aluminum Housing, iglide® A180
PRT-01-20-A180
igus
iglide® PRT-01 Slewing Ring, Aluminum Housing, iglide® H1 Sliding Elements
PRT-01-20-H1
igus
iglide® PRT-01 Slewing Ring, Aluminum Housing, iglide® J Sliding Element
PRT-01-20
igus
iglide® PRT-01 Slewing Ring with Enlarged Outer Ring
PRT-01-100-M-ARG
igus
iglide® PRT-01 Slewing Ring - Seal on One Side - Aluminum Housing, iglide® J Sliding Elements
PRT-01-60-D
igus
iglide® PRT-01 Slewing Ring - Seal at Both Ends - Aluminum Housing, iglide® J Sliding Elements
PRT-01-100-DD
igus
iglide® PRT-01 Slewing Ring, Head Ring with Clamp, iglide® J Sliding Elements
PRT-01-20-C
igus
PRT-04 Slewing Ring Drive Shaft - Aluminum
PRT-AZ-60
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PRT-01-20-AA?
- PRT-01-20-AA can be ordered from cballast.com as a igus catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this igus product?
- The manufacturer part number is PRT-01-20-AA.
- What is the HS code for PRT-01-20-AA?
- The customs tariff (HS) code for PRT-01-20-AA is 8483.30.
- Who manufactures PRT-01-20-AA?
- PRT-01-20-AA is a igus product in the Safety & Detection range.
- Is a datasheet available for PRT-01-20-AA?
- Yes — the PRT-01-20-AA datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PRT-01-20-AA?
- The minimum order quantity is 1.
- Is PRT-01-20-AA available?
- Yes — PRT-01-20-AA is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
