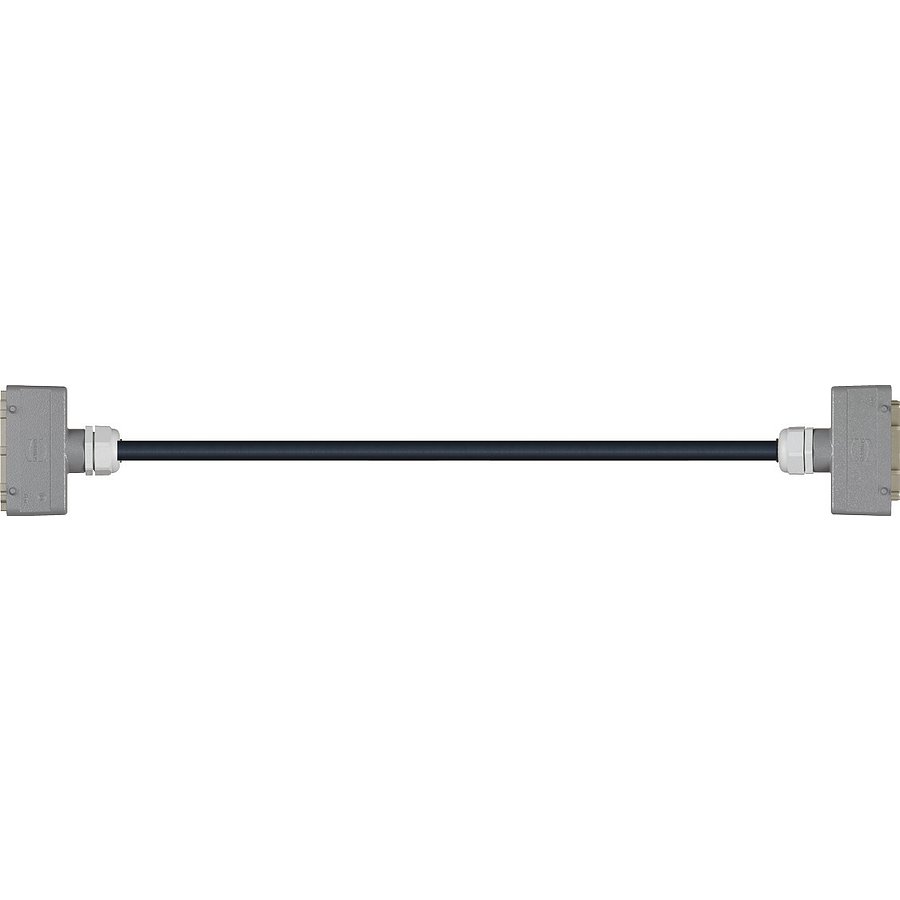

Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Double locking lever on both sides, straight, PUR 6.8 x d
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 24B connector housing (pin) on Han 24B connector housing (socket), double locking lever, straight at both ends, PUR 6.8xd
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489460
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M32 insert 24+PE straight Cable entry
- Connector B
- Connector M32 insert 24+PE straight Cable entry
- Insert 1 HARTING Part No.
- 09330242702
- Insert 2 HARTING Part No.
- 09330242602
- Housing 1 HARTING Part No.
- 19300241422
- Housing series
- Han 24B
- Connector design
- straight cable entry on both sides
- Locking type
- double locking lever
- Number of cores and conductor nominal cross-section
- 25G1.5
- Copper index kg/km
- 297 kg/km
- Outer diameter (d) max. mm
- 19.5 mm
- Weight per km
- 564 kg/km
- Min. bend radius, e-chain (factor)
- 6.8 x d
- Min. bend radius, e-chain
- 132.6 mm
- Min. bend radius, flexible (factor)
- 5 x d
- Min. bend radius, flexible
- 97.5 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 78 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 5 m/s
- a max. (acceleration)
- 80 m/s²
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- v max., twisted (speed)
- 180 °/m
- torsion
- Torsion ±180°, with 1m cable length, Class 3
- Conductor
- Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in bundles are then wound around a high tensile strength centre element, all with optimised short pitch lengths and directions. Especially low-torsion structure.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Window grey (comparable to RAL 7040)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1, material/cable tested by IPA according to DIN EN ISO standard 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11323 and 21223, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- DESINA
- According to VDW, DESINA standardisation
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X1
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
- OEM-URL https://www.igus.com/product/MAT90489460
Product Documentation
